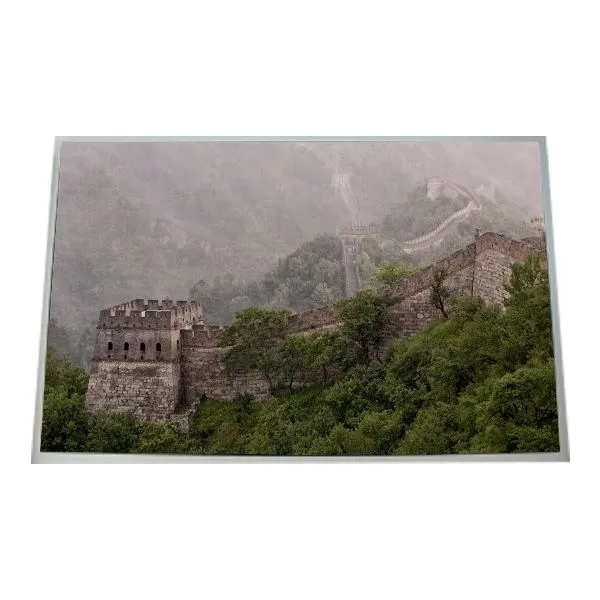

LM240WUC-SSA1 24.0 Inch Lcd Panel Original For Industrial Lcd Screen

LM240WUC-SSA1 24.0 Inch Lcd Panel Original For Industrial Lcd Screen

Welcome to our website LM240WUC-SSA1 lcd panel is new and original. Our company have plenty of lcd panel in stock. If you need lcd panel, please contact me, we can give you best price.
Send Inquiry
Chat Now
Description
LM240WUC-SSA1 LCD Screen Tracking Information:



Brand

LG

Model P/N

 LM240WUC-SSA1

Diagonal Size

 24.0"

Panel Type
a-Si TFT-LCD, LCM

Resolution

 1920(RGB)×1200, WUXGA 94PPI

Pixel Format
RGB Vertical Stripe

Active Area

 518.4(W)×324(H) mm

Bezel Opening

 -

Outline Dim.

 528.2×339.6×13.9 (H×V×D)

Viewing Angle

 89/89/89/89 (Typ.)(CR≥10)
Color Depth
 16.7M 100% sRGB

Frame Rate

 100Hz

Treatment

 Antiglare (Haze 25%), Hard coating (3H)

Contrast Ratio

 1500 : 1 (Typ.) (TM)

Response Time

 14 (Typ.)(G to G) ms

Operating Mode

 IPS, Normally Black, Transmissive

Light Source

 16S4P WLED , 30K hours , No Driver
Mass 1.93/2.03Kgs (Typ./Max.)

Designed For

Desktop Monitor/Industrial

Touch Panel

Without

Interface Type
LVDS (2 ch, 8-bit) , Connector 30 pins

Power Supply

5.0V (Typ.)

Environment

 Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C



Precautions for Purchasing the LM240WUC-SSA1 LCD Panel



Installation Precautions:

Refrain from using adhesive to affix the screen until its functionality is confirmed.

We cannot accept returns or issue refunds for screens that have been glued in place.


Testing and Verification:

Before installation, conduct a comprehensive test of the LCD screen.

Record a video during testing to ensure proper functioning.

Installation should proceed only after confirming the screen's operational status.

In case of any malfunction, provide us with the test video to facilitate resolution.

Power Off Before Handling:

Prior to testing or installation, ensure the device's power is switched off or the battery is disconnected.

Failure to do so may result in malfunction or damage.



LM240WUC-SSA1 LCD Screen Shipping and Package：



product-1-1



LM240WUC-SSA1 LCD Screen contact us:



product-30-30tel: +86-18575563918

product-30-30Phone: +86-18575563918

product-30-30Envelope: chance@yongs-hk.com

product-30-30Address:Shenzhen, China

product-30-30Whatsapp: +86-18575563918

product-30-30Skype: +86-18575563918



LM240WUC-SSA1 FAQ:



Q: How to make payment of LM240WUC-SSA1 ?

A: We accept T/T , Paypal , western union .



Q: If I place order now,when will you ship the goods of LM240WUC-SSA1 ?

A: The order will be shipped within 2-3 working days after received your payment.



Q: Can You declare my order of LM240WUC-SSA1 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .



Q: Do you accept sample orders ofLM240WUC-SSA1 ?

A: Of course!sample order is welcome !
