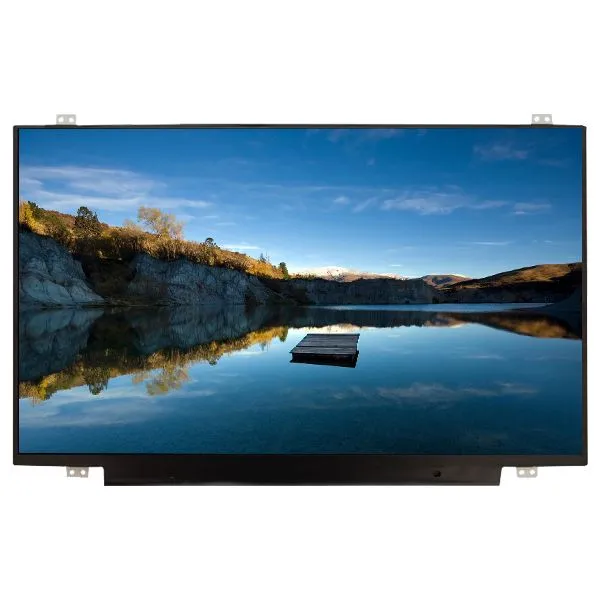

PANDA LCD Screen LC133LF2L03 | |
Manufacturer | PANDA |
Model Name | LC133LF2L03 |
Screen Size | 13.3 inch |
Screen Type | CELL, Oxide TFT-LCD |
Pixel Number | 1920(RGB)×1080 (FHD) 166PPI |
Arrangement | RGB Vertical Stripe |
Active Area(mm) | 293.76 × 165.24 (H×V) |
Outline(mm) | 301.96 × 175.8 × 1.02 (H×V×D) |
Treatment | Antiglare, Hard coating (3H) |
Luminance | 0 cd/m² |
Contrast Ratio | 1000 : 1 (Typ.) (TM) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
Response | 5 (Typ.)(Tr+Td) ms |
Good View at | Symmetry |
Work Mode | FFS, Normally Black, Transmissive |
Glass Thickness | 0.40+0.40 mm |
Transmissivity | 4.3% (Typ.)(with Polarizer) |
Color Depth | 16.7M 99% sRGB |
Backlight | No B/L , With LED Driver |
Used for | Laptop |
Refresh Rate | 60Hz |
Touchscreen | Without |
Driver IC list | Built-in COG 4 source + 2 gate chips |
Signal Type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
Monitors 13.3 inch LC133LF2L03 1920x1080 Lcd Screen Display Touch Digitizer Spare Parts Assembly Replacement | |
Product Type:
We offer excellent industrial LCD products, maybe you captured pictures and cargo does not meet on LOGO, probably due to product upgrades or other reasons, but the product information completely and electrical properties, mechanical properties consistent failure to make timely notification to customers, please understand! Products will not affect your use.Display Color mismatch:The color LCD module slight deviation may be caused by a number of other reasons, such as color reflection in the monitor, lighting, background etc..However, if you think the item received is in wrong color, please contact us to see if retutn or refund.
Q: How long is the warranty of LC133LF2L03 ?
A: 90days warranty .
Q: How can I trace my order of LC133LF2L03 ?
A: we will give you tracking number then you can trace your order from website.
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of lcd module LC133LF2L03 at a very low value ?
A: Yes , we can . pls inform us before shipping .
