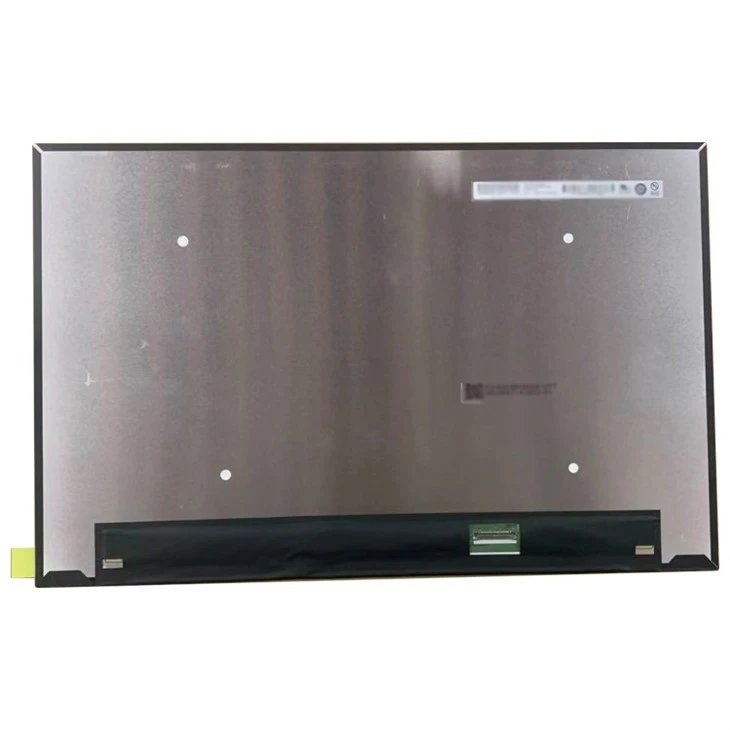

B160UAX01.0 Information:
|
Brand |
AUO |
|
Model |
B160UAX01.0 |
|
Diagonal Size |
16.0 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Number |
1920(RGB)×1200, 16:10, WUXGA |
|
Pixel Format |
RGB Vertical Stripe |
|
Active Area |
344.68×215.42 mm (H×V) |
|
Outline Area |
349.68×231.92×3 mm (H×V×D) |
|
Weight |
400g (Max.) |
|
Surface Feature |
Antiglare |
|
Luminance |
400 cd/m² (Typ.) |
|
Contrast Ratio |
1000:1 (Typ.) (TM) |
|
Viewing Angle |
89/89/89/89 (Min.)(CR≥10) |
|
Response (ms) |
25 (Typ.)(Tr+Td) |
|
Good View at |
Symmetry |
|
Display Type |
AHVA, Normally Black, Transmissive |
|
Dispaly Colors |
16.7M, 45% NTSC |
|
Used for |
Laptop |
|
Outline Shape |
Slim (PCBA Flat, T≤3.2mm) |
|
Backlight |
WLED, 15K hrs, With LED Driver, DC |
|
Frame Rate |
60Hz |
|
Touch Panel |
In-Cell Touch, I²C, for Win11 |
|
Interface Type |
eDP (2 Lanes), eDP1.2, 40 pins Connector |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
B160UAX01.0 Professional Installation Required:
This LCD panel requires professional installation. We suggest the installation be performed by qualified technicians experienced in electronic component replacement. If you lack relevant screen installation skills, we highly recommend hiring a professional to carry out the work. Proper installation helps guarantee normal operation and greatly reduces the risk of damaging the panel.
The B160UAX01.0 features outstanding appearance and display performance to optimize your visual experience. Once correctly installed and running, you will appreciate its premium quality.
It delivers excellent audio‑visual performance to enrich your experience and boost office efficiency. We offer complete pre‑sales consultation and after‑sales support. You can purchase and use our product with confidence.
B160UAX01.0 Product Usage：
B160UAX01.0 contact US：
Tel: +8618575563918
E-mail: sales@yongs-hk.com
Please feel free to contact us for quotation, technical consultation and business cooperation. You can send emails to sales@yongs-hk.com or fill out the inquiry form. Our sales representative will get back to you within 24 hours. Thank you for your interest in B160UAX01.0 LCD panels.
B160UAX01.0 FAQ：
Q: How long is the warranty of B160UAX01.0 ?
A: 90days warranty .
Q: How can I trace my order of B160UAX01.0 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods B160UAX01.0 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Do you accept sample orders for B160UAX01.0 ?
A: Of course!sample order is welcome !
Hot Tags: b160uax01.0 16.0 inch tft lcd display, China, suppliers, wholesale, buy, cheap, discount, low price, in stock
