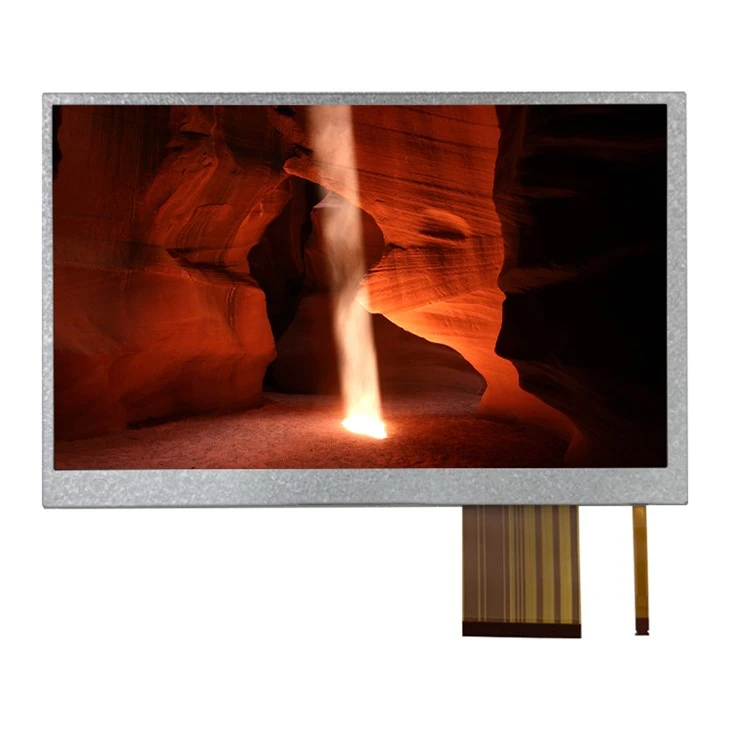

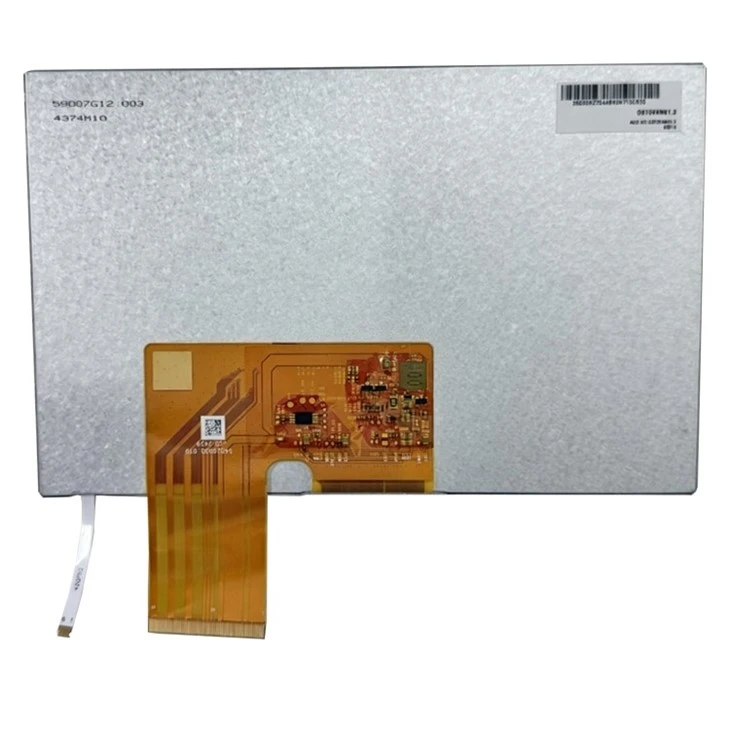

G070VAN01.3 Information:

Brand	AUO
Model No.	G070VAN01.3
Screen Size	7.0 inch
Screen Type	a-Si TFT-LCD, LCM
Number of dots	800×480(RGB), WVGA, 15:9
Pixel Format	RGB Horizontal Stripe
Active Area	152.4×91.44 mm (H×V)
Surface Feature	Antiglare
Luminance	520 cd/m² (Typ.)
Contrast Ratio	1300:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Response (ms)	11/19 (Max.)(Tr/Td)
Good View at	Symmetry
Display Type	AHVA, Normally Black, Transmissive
Display Colors	16.7M, 70% NTSC
Used for	Industrial
Backlight	WLED, 20K hrs, No Driver
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 6/8-bit), 30 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	-Operating Temp. -20 ~ 70 °C

Video Recording & After-sales Instructions for G070VAN01.3:

To ensure accurate and efficient after-sales processing for the G070VAN01.3 LCD panel, please follow the standard video recording guidelines for product verification and problem feedback.

First, confirm that the original motherboard works normally, then install the G070VAN01.3 screen correctly for testing. When recording the test video, please ensure the product model, fragile label, and our official YONGS logo are fully and clearly visible in the footage.

If the product fails to work properly during correct installation and operation, please provide a complete test video for us. We will promptly verify the problem and handle your after-sales request. Once the product issue is confirmed to be caused by our product quality problem, we will take full corresponding responsibility.

G070VAN01.3 Product Usage:

G070VAN01.3 Manufacturing & Quality Excellence:

We adhere to strict manufacturing excellence standards for every G070VAN01.3 LCD Panel. Fully recognizing that quality is the core of customer satisfaction, we implement rigorous production and quality control procedures to ensure all products meet and exceed industry standards and customer expectations.

We adopt standardized quality control systems throughout production to detect and eliminate potential product defects before delivery. We continuously upgrade our manufacturing processes and introduce advanced production technology to maintain stable product performance and industry competitiveness. Every production link is strictly monitored and optimized to pursue high-quality output.

For the production of the G070VAN01.3 LCD screen, we focus on every production detail from high-quality material selection to precision assembly. Each panel undergoes standardized testing procedures to ensure outstanding durability, stability and reliability. We always insist on delivering premium-grade products and strive to provide customers with cost-effective and trustworthy LCD display solutions.
