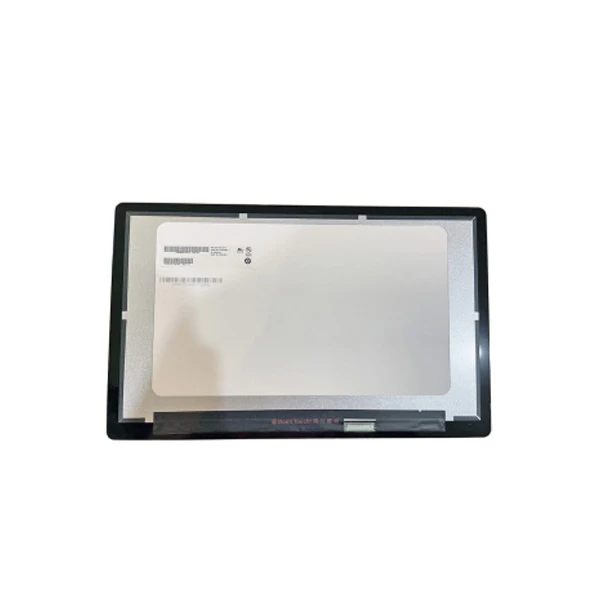

G156HAB02.2 Information:

Brand	AUO
Model P/N	G156HAB02.2
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, Assembly
Resolution	1920(RGB)×1080, FHD 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.16(W)×193.59(H) mm
Bezel Opening	-
Luminance	-
View Direction	Symmetry
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Support Color	16.2M
Weight	-
Frame Rate	60Hz
Contrast Ratio	800:1 (Typ.) (TM)
Response Time	25 (Typ.)(Tr+Td)
Operating Mode	-
Light Source	WLED, 50K hours
Designed For	Industrial
Touch Panel	On-Cell Touch
Interface Type	eDP (2 Lanes), eDP1.2
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C

G156HAB02.2 Notice:

Part Number Clarification:

Please be aware that the part numbers listed in the titles are provided solely to assist you in locating a compatible screen for your current model number. While we strive to ensure compatibility, it is not guaranteed that you will receive the exact part number as indicated in the listing title. Rest assured, we will ship a 100% compatible item equivalent to the original part number. Manufacturers frequently update and modify part numbers over time, and certain part numbers may no longer be available.

Illustrative Purposes Only:

Additionally, the pictures included in the listing serve purely for illustrative purposes, intended to showcase the connector's position and the fixing points. These images are meant to provide guidance and clarity regarding the product, but the actual item shipped may vary slightly in appearance.
