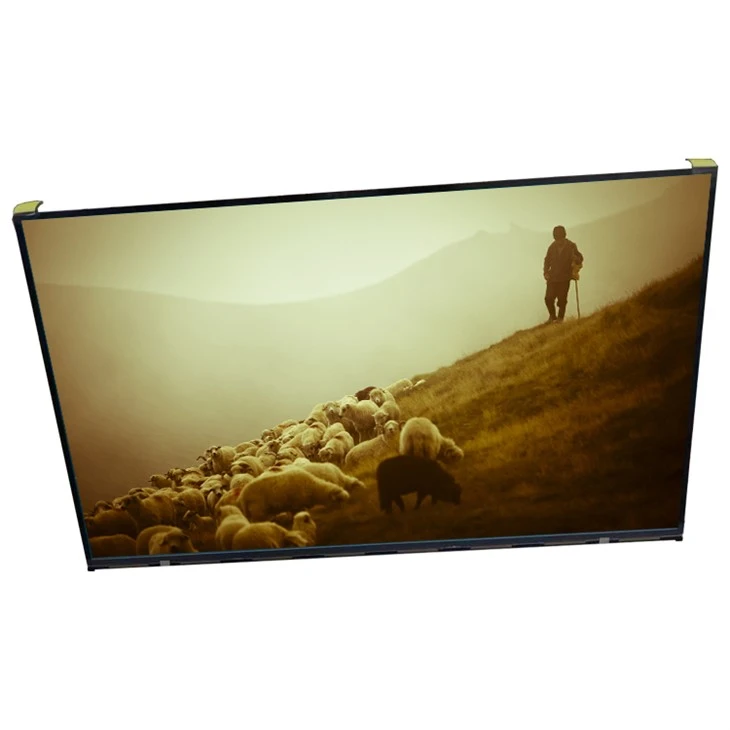

EV215FHM-N12 LCD Screen Tracking Information:

Brand	BOE
Model	EV215FHM-N12
Diagonal Size	21.5 inch
Type	a-Si TFT-LCD, LCM
Pixel Number	1920(RGB)×1080, 16:9, FHD
Pixel Format	RGB Vertical Stripe
Active Area	476.064(H)×267.786(V) mm
Physical Size	497.6(H)×292.16(V)×11(D) mm
Mass	1.74Kgs (Typ.)
Surface Coating	Antiglare or Glare
Luminance	300 cd/m² (Typ.)
Contrast Ratio	1500:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	5 (Typ.)(G to G) mm
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	ADS, Normally Black, Transmissive
Support Color	16.7M, 72% NTSC
Designed For	Medical Imaging
Power Usage	9.95/12.55W (Typ./Max.)
Light Source	WLED, 30K hrs, Without Driver
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit), 30 pins 1.0mm Connector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature 0 ~ 50 °C, Storage Temperature -20 ~ 60 °C

EV215FHM-N12 LCD Screen Features:

LCD panels are widely adopted in modern industrial applications. This EV215FHM-N12 panel features light weight, compact form and low power consumption, paired with outstanding visual performance. Compared with conventional displays, it delivers superior reliability and long-term stability to cut your operational cost, making it a preferred option for enterprise projects. This LCD panel is eco-friendly during production and operation. Even with limited viewing angles, its comprehensive strengths have earned broad market recognition across various scenarios.
