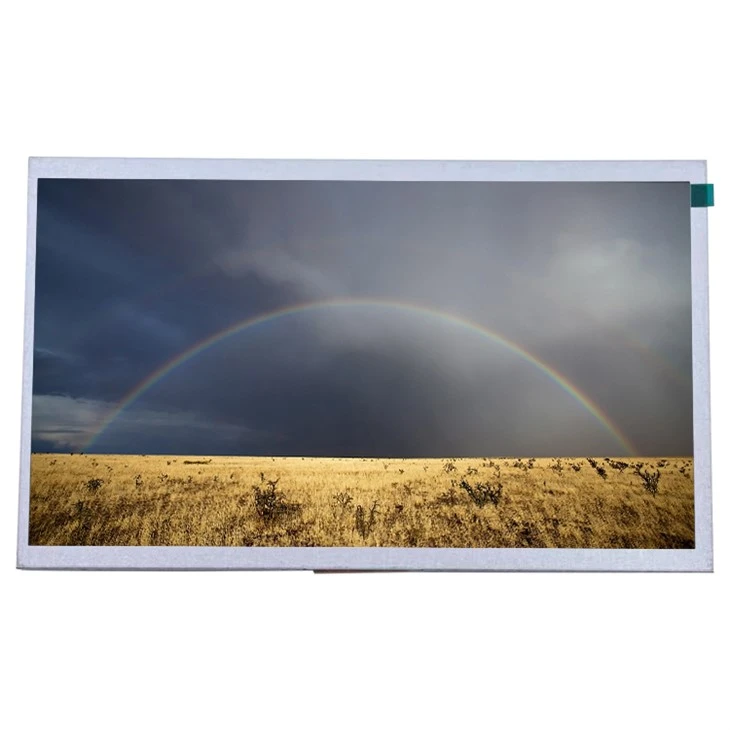

GV080WU2-M00 Information:

Brand	BOE
Model	GV080WU2-M00
Diagonal Size	8.0 inch
Type	a-Si TFT-LCD, LCM
Pixel Number	1920(RGB)×1200, WUXGA, 16:10
Pixel Format	RGB Vertical Stripe
Active Area	172.224(H)×107.64(V) mm
Physical Size	113.1(H)×182.4(V)×4.25(D) mm
Mass	88.0g (Typ.)
Surface Coating	-
Luminance	435 cd/m² (Typ.)
Contrast Ratio	1200:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	35 (Max.)(Tr+Td) ms
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	ADS, Normally Black, Transmissive
Support Color	16.7M, 72% NTSC
Designed For	Industrial
Power Usage	2.28/2.61W (Typ./Max.)
Light Source	8S3P WLED, 30K hrs, Without Driver
Frame Rate	60Hz
Touch Panel	Without, I²C
Interface Type	LVDS (2 ch, 8-bit), 45 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature -20 ~ 70 °C, Storage Temperature -30 ~ 80 °C

GV080WU2-M00 TIPS:

Please record an unpacking video when opening your parcel. This serves as valid evidence if the LCD panel arrives damaged.

Please test the panel before installation. This is very important!

If you lack experience in LCD replacement, please ask a professional technician or repair shop to perform the installation.

LCD panels are fragile. Improper installation may cause physical damage or functional failure.

All panels go through three rounds of testing before shipment. Without an unpacking video as proof, we cannot confirm factory defects. We take no responsibility for damage caused by improper installation.

If the product proves defective upon receipt, you may return it to us. We will send you a replacement after we receive the faulty unit. Please ensure the panel surface remains intact when returned.
