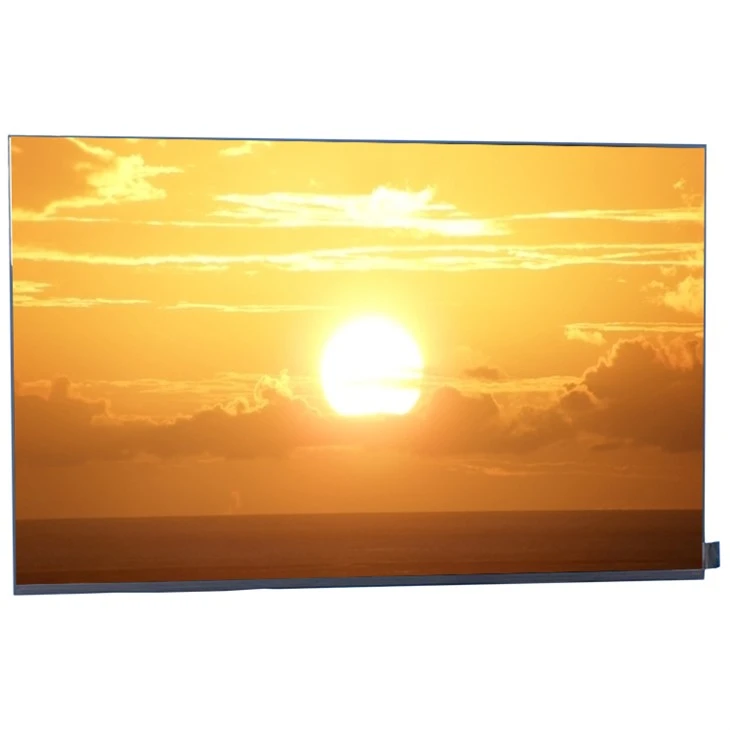

NE140WUM-N6M Information:

Brand	BOE
Model No.	NE140WUM-N6M
Screen Size	14.0"
Screen Type	Oxide TFT-LCD, LCM
Number of dots	1920(RGB)×1200, WUXGA, 16:10
Pixel Structure	RGB Vertical Stripe
Active Area	301.594(W)×188.496(H) mm
Outline Area	306.59(W)×197.6(H)×4.5(D) mm
Weight	240g (Max)
Surface Feature	Antiglare, Hard coating (3H)
Luminance	500 cd/m² (Typ.)
Contrast Ratio	1500:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Response (ms)	25 (Typ.)(Tr+Td) mm
Good View at	Symmetry
Display Type	HADS, Normally Black, Transmissive
Display Colors	16.7M, 100% sRGB, Low Blue Light
Used for	Laptop
Shape Style	Slim (PCBA Bent, T≤3.5mm)
Light Source	10S8P WLED, 15K hrs, With LED Driver, DC
Refresh Rate	60Hz, AMD FreeSync
Touchscreen	Without
Signal Type	eDP (2 Lanes), eDP1.4b, HBR1 (2.7G/lane), 30 pins 0.5mm Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Operating Temp. 0 ~ 50 °C ;Storage Temp. -20 ~ 60 °C

NE140WUM-N6M Warranty / Returns Policy:

Warranty Coverage

Your NE140WUM-N6M LCD Screen comes with a 30-day warranty effective from the date of delivery, covering product quality and normal functionality within this period.

Returns Procedure

If you have any problems with the item, please contact us promptly. Our customer support team will help troubleshoot issues with your LCD panel and offer professional guidance to achieve satisfactory solutions.

Part Verification

We highly recommend checking the part number of your original old screen before installation to confirm compatibility. Verifying the model number ensures the replacement screen fits and works properly with your device.
