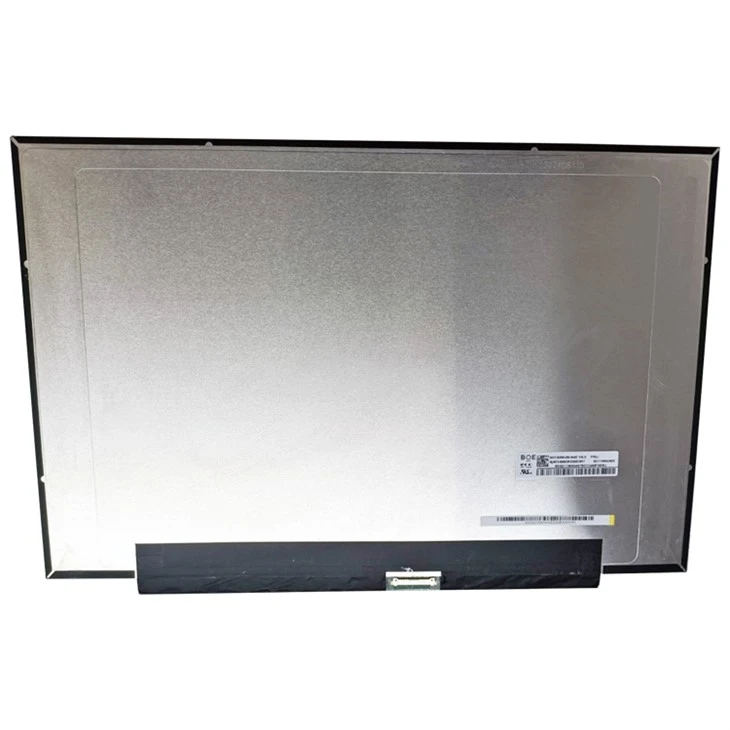

NV160WUM-N4E Tracking Information:
|
Brand |
BOE |
|
Model Name |
NV160WUM-N4E (BOE0D37) |
|
Display Size |
16.0 inch |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
1920(RGB)×1200, WUXGA, 16:10 |
|
Dot Layout |
RGB Vertical Stripe |
|
Display Area |
344.68×215.42 mm (H×V) |
|
Panel Weight |
410g (Max.) |
|
Outline Size |
349.68×225.02×5.2 mm (H×V×D) |
|
Surface |
Antiglare, Hard coating (3H) |
|
Brightness |
400 cd/m² (Typ.) |
|
Contrast Ratio |
1500:1 (Typ.) (TM) |
|
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
|
Display Mode |
ADS, Normally Black, Transmissive |
|
View Direction |
Symmetry |
|
Response Time |
20 (Typ.)(Tr+Td)mm |
|
Display Colors |
16.7M, 50% NTSC, Low Blue Light |
|
Touch Screen |
Without |
|
Shape Style |
Slim (PCBA Bent, T≤3.5mm) |
|
Light Source |
11S6P WLED, 15K hrs, With LED Driver, DC |
|
Frequency |
60Hz |
|
Application |
Laptop |
|
Interface |
eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane), 30 pins 0.5mm Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Storage Temp. -20 ~ 60 °C Operating Temp. 0 ~ 50 °C |
NV160WUM-N4E Note:
Compatibility Assurance
The LCD panel you receive will work with your device. It may not look exactly the same as the unit shown in the title, as we supply functionally compatible alternatives. If you need the exact same model number, please contact us before ordering. Subject to stock availability, we can provide real photos of the specific panel for your confirmation.
Precautionary Measures
We recommend you remove your original screen and share your LCD part number plus laptop model with us before purchase. This helps us confirm the correct item for you. International shipping carries high costs, so please double-check your requirements to avoid extra fees and inconvenience.
For Glued Notebook Screens
Many modern laptops use glued screen assemblies. Separating the LCD from the front bezel or touch digitizer can be difficult. Before buying, please confirm whether you only need a bare LCD panel or a full screen assembly. Many buyers have run into problems by not checking this in advance. Please evaluate your repair needs and pick the right solution.
NV160WUM-N4E Product Usage：
NV160WUM-N4E contact US：
Tel:+8618575563918
E-mail:sales@yongs-hk.com
If you have any enquiry about quotation or cooperation, please feel free to email us at sales@yongs-hk.com or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products
NV160WUM-N4E FAQ：
Q: How can I trace my order of NV160WUM-N4E?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of NV160WUM-N4E?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of NV160WUM-N4E via credit card ?
A:Yes!you can use your credit card through your Paypal account.
Hot Tags: nv160wum-n4e lcd screen 1920*1200 16.0 inch lcd panel, China, suppliers, wholesale, buy, cheap, discount, low price, in stock
