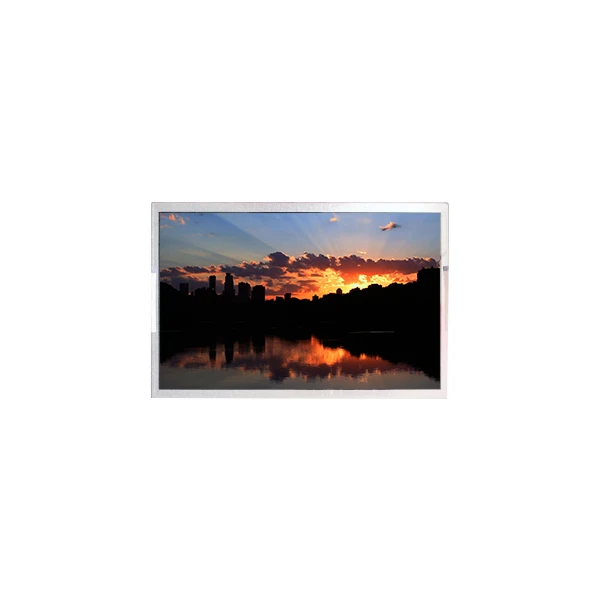

NV156FHM-NL2 LCD Screen Tracking Information:

Brand	BOE
Model P/N	NV156FHM-NL2
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.16(W)×193.59(H) mm
Bezel Opening	-
Outline Dim.	350.66(H)×216.25(V)×3.2(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	300 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	20 (Typ.)(Tr+Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	ADS, Normally Black, Transmissive
Support Color	16.2M 45% NTSC
Light Source	WLED [10S5P] , 15K hours , With LED Driver
Form Style	Slim (PCBA Flat, T≤3.2mm)
Designed For	Laptop
Frame Rate	60Hz
Touch Panel	Without
Interface Type	eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

NV156FHM-NL2 LCD Screen Installation Instructions:

Preparation is crucial before carrying out any task. This also applies to software and system installations. By taking preventive measures, the likelihood of problems occurring can be greatly reduced, ensuring efficient task execution.

Firstly, ensure that important data has been backed up before installation begins. This is crucial as the installation process may result in data loss or damage. Therefore, before starting the installation, it is best to back up all important files and data to an external hard drive or cloud storage.

Secondly, check if your system meets the minimum requirements of the software or system. A system that does not meet the requirements is likely to result in installation failure or software or system malfunction. Therefore, before starting the installation, please make sure that your system meets the requirements.

Another key issue is to ensure that your system has received all updates and patches. Unupdated or unrepaired systems may experience compatibility issues due to a lack of patches, which can affect the success of the installation process. Therefore, before starting the installation, please make sure that your system has been updated to the latest version.

NV156FHM-NL2 LCD Screen Product Usage:

Product Usage
