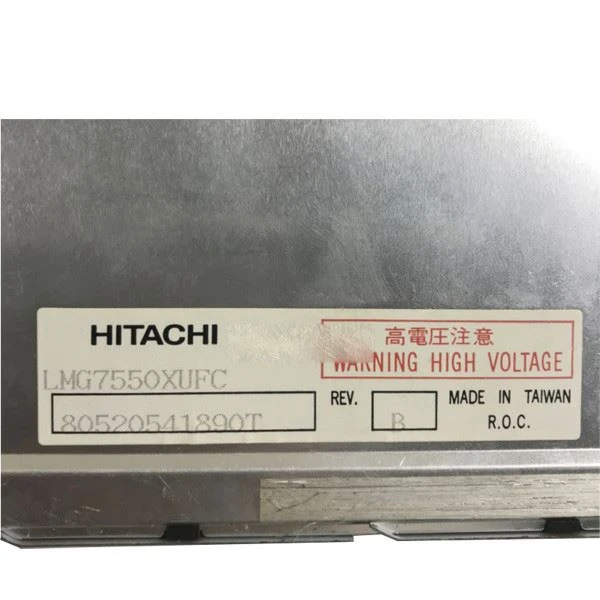

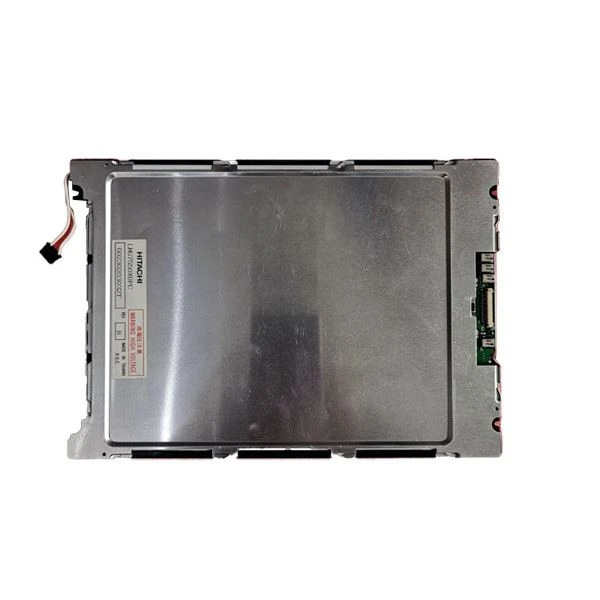

HITACHI LCD Screen LMG7550XUFC | |
Panel Brand | HITACHI |
Panel Model | LMG7550XUFC |
Panel Size | 10.4 inches |
Panel Type | FSTN-LCD, LCM |
Resolution | 640×480 VGA 76PPI |
Pixel Format | Rectangle |
Display Area | 211.17(horizontal)×158.37(vertical) mm |
Bezel Opening | 220.2(horizontal)×165.77(vertical) mm |
Outline Size | 264 (horizontal) × 183 (vertical) × 9 (thickness) mm |
Surface | Matte, Hard coating (3H) |
Brightness | 100 cd/m² (Typ.) |
Contrast Ratio | 18:1 (Typ.) (Transmission) |
Viewing Angle | 40 (Typ.)(CR≥2, Φ2-Φ1) |
Display Mode | STN, Black/White (Negative), Transmissive |
Best View on | 12 o'clock |
Response Time | 160/110 (Typ.)(Tr/Td) ms |
Display Colors | Monochrome |
Lamp Type | CCFL [1 pcs] , no driver |
Designed For | Industrial |
Touch Screen | Without |
Signal Interface | 15 pins Parallel Data (4-bit) , terminal |
Environment | Operating temperature: 0 ~ 45 °C ; Storage temperature: -25 ~ 60 °C |
LMG7550XUFC 10.4 inch LCD display for industrial applications | |
Customer Service Policy:
We are happy to answer any questions you may have, please get in touch and we will try to get back to you as soon as possible.
Business scope: one-stop supporting services such as automotive IC, digital-analog circuit, single-chip microcomputer, photoelectric coupling, storage, three-terminal voltage regulator, field effect, Schottky, relay, resistor capacitor, lamp, connector, etc.!
1. The company has a huge team and many years of experience in operating other cross-border platforms. I believe it can serve your needs well.
2. After confirming the payment, the order will be processed in time.
Q: Do you accept sample orders of LMG7550XUFC ?
A: Of course!sample order is welcome !
Q: How can I trace my order of LMG7550XUFC ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of LMG7550XUFC ?
A: Of course！If you make a large order, we will give you a discount.
Q: How to make payment of LMG7550XUFC ?
A: We accept T/T , Paypal , western union .
