Chimei Innolux LCD SCREEN AT056TN52 V.3 | |
manufacturer | Chimei Innolux |
Model Name | AT056TN52 V.3 |
screen size | 5.6 inch |
Screen type | a-Si TFT-LCD, LCD module |
Resolution | 640(RGB)×480 VGA 143PPI |
Pixel configuration | RGB vertical bar |
Display size | 112.896(H)×84.672(V) mm |
physical dimension | 126.5(H)×100(V) ×6(D) mm |
Visual size | 115.70(H)×87.47(V) mm |
surface treatment | Matte |
Brightness | 200 cd/m² (Typ.) |
Contrast | 500:1 (Typ.) (TM) |
Best angle | 6 o'clock |
Optical mode | TN, normally white display, transmissive |
Viewing angle | 70/70/50/70 (Typ.)(CR≥10) |
Responding time | 10/15 (Typ.)(Tr/Td)ms |
Number of color | 16.7M |
Backlight type | WLED [3S5P] ,20K hours,without driver |
Panel weight | 127.5g (Typ.) |
Apply to | Industrial / Digital Photo Frame / Video Doorbell / Video Phone |
signal system | 50 pins Parallel RGB (1 ch, 8-bit) , FPC |
Supply voltage | 3.3/5.0/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
Maximum rating | Work: -20 ~ 70 °C; Storage: -30 ~ 80 °C |

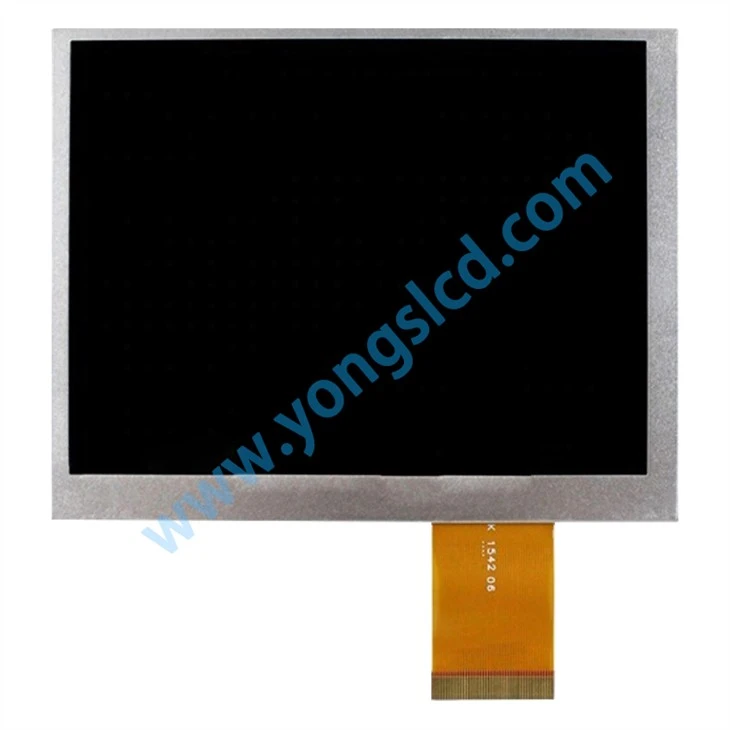

Innolux 5.6 inch TFT LCD Panel AT056TN52 V.3 | |
Q: How long is the warranty of AT056TN52 V.3 ?
A: 90days warranty .
Q:How can I trace my order of Innolux AT056TN52 V.3 ?
A:we will give you tracking number then you can trace your order from website.
Q:Can I pay my goods AT056TN52 V.3 by credit card ?
A:Yes！you can use your credit card through your Paypal account.
Q:Can you give me a discount if I need a large quantity of AT056TN52 V.3 ?
A:Of course！If you make a large order, we will give you a discount.
We are one of the professional and experienced suppliers of Innolux 5.6 inch TFT LCD Panel AT056TN52 V.3, offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
