Innolux LCD SCREEN N156HHE-GA1 (CMN15F4) | |
brand | Innolux |
Model Name | N156HHE-GA1 (CMN15F4) |
screen size | 15.6 inch |
Screen type | LCM, a-Si TFT-LCD |
Resolution | 1920(RGB)×1080 [FHD] 141PPI |
Pixel configuration | RGB vertical bar |
Display size | 344.16 × 193.59 mm (H×V) |
physical dimension | 359.5 × 223.8 × 3.2 mm (H×V×D) |
Surface treatment | Matte，Hard coating (3H) |
Brightness (cd/m²) | 300 (Typ.) |
Contrast | 500: 1 (Typ.) [Transmission] |
Optical mode | TN, normally white display, transmissive |
Viewing angle | 85/85/60/60 (Typ.)(CR≥10) |
responding speed | 1.5/3.5 (Typ.)(Tr/Td) ms |
Number of colors | 16.7M , 94% NTSC |
Backlight type | WLED, 15K hours , with LED driver |
Appearance style | Thin screen (PCBA straight, thickness ≤3.2mm) |
Apply to | Notebook/game |
Refresh rate | 120Hz |
signal system | 30 pins,eDP (2 Lanes) , eDP1.3 ,connector |
Supply voltage | 3.3V (Typ.) |
Maximum rating | Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C |

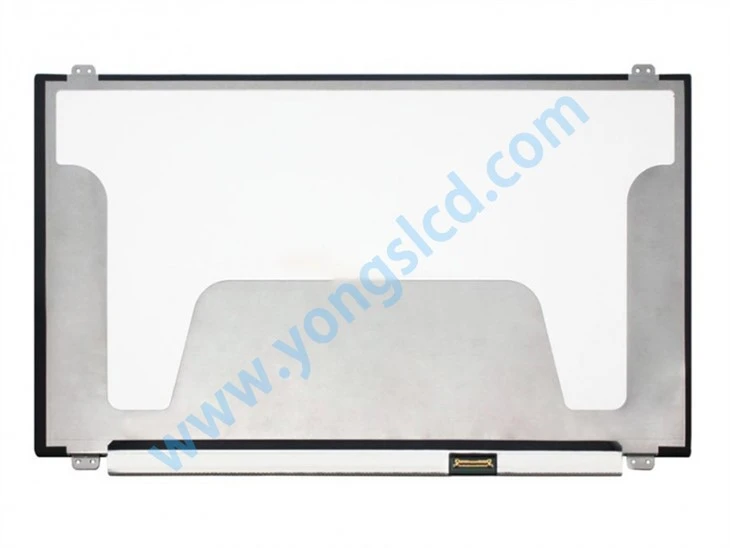

Laptop Screen LCD LED Display N156HHE-GA1 | |
Q:How can I trace my order of N156HHE-GA1 (CMN15F4) ?
A:we will give you tracking number then you can trace your order from website.
Q:Can you give me a discount if I need a large quantity of N156HHE-GA1 (CMN15F4)?
A:Of course！If you make a large order, we will give you a discount.
Q:How to make payment of N156HHE-GA1 (CMN15F4) ?
A:We accept T/T , Paypal , western union .
Q:Can you give me a discount if I need a large quantity of N156HHE-GA1 (CMN15F4)?
A:Of course！If you make a large order, we will give you a discount.
We are one of the professional and experienced suppliers of Laptop Screen LCD LED Display N156HHE-GA1, offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
Hot Tags: laptop screen lcd led display n156hhe-ga1, China, suppliers, wholesale, buy, cheap, discount, low price, in stock
