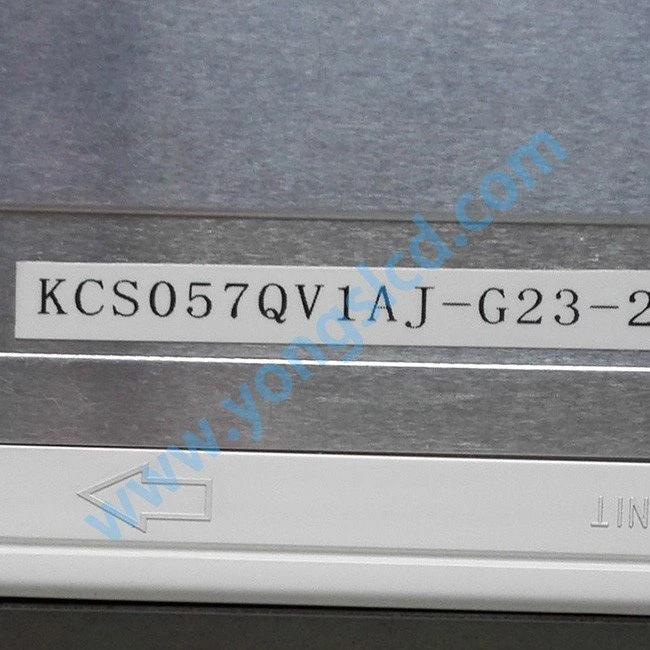

Kyocera LCD SCREEN KCS057QV1AJ-G23
| Brand | Kyocera |
Model Name | KCS057QV1AJ-G23 |
Screen size | 5.7" |
Screen type | LCD module, CSTN-LCD |
Resolution | 320(RGB)×240 [QVGA] 70PPI |
Pixel configuration | RGB vertical bar |
Display size | 115.2 * 86.4 mm (H*V) |
physical dimension | 154.6 * 114.8 * 9 mm (H*V*D) |
Visual size | 120.0 * 91.4 mm (H*V) |
Surface treatment | Mirror (Haze 0%) |
Brightness (cd/m²) | 200 (Typ.) |
Contrast | 40: 1 (Typ.) [Transmission] |
Optical mode | STN, normally black display, transmissive |
Viewing angle | 50/50/30/30 (Typ.)(CR≥2) |
responding speed | 220/110 (Typ.)(Tr/Td) ms |
Number of colors | False color, 35% NTSC |
Backlight type | 1 pcs CCFL, 40K hours, optional |
Screen weight | 200g (Typ.) |
Refresh rate | 75Hz |
Touch function | No touch |
signal system | Parallel Data (8-bit), connector, 15 pins |
Supply voltage | 5.0V (Typ.) |
Maximum rating | Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 60 °C |
Q:If I place order now，when will you ship the goods of KCS057QV1AJ-G23 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q:Can I pay my order of KCS057QV1AJ-G23 via credit card ?
A:Yes！you can use your credit card through your Paypal account.
Q:Can You declare my order of KCS057QV1AJ-G23 to a lower price in commercial invoice for customs?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods KCS057QV1AJ-G23 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
