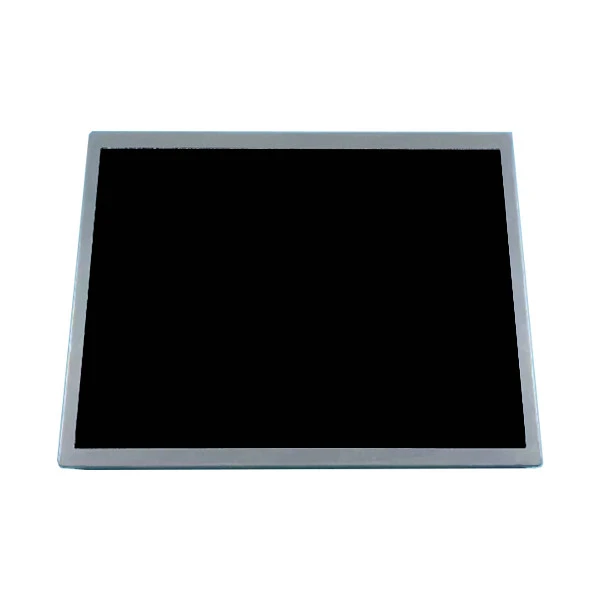

AA104SH01 Information:

Brand	Mitsubishi
Model P/N	AA104SH01
Diagonal Size	10.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA 96PPI
Pixel Format	RGB Vertical Stripe
Active Area	211.2(W)×158.4(H) mm
Bezel Opening	215.4(W)×161.8(H) mm
Outline(mm)	241 × 180.2× 11 (H×V×D)
Treatment	Antiglare, Hard coating (3H)
Luminance	700 cd/m² (Typ.)
Contrast Ratio	700 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Response	4/12 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K/16.7M 41%NTSC
Backlight	2 stringsWLED, 60K hours, No Driver
Mass	520g (Typ.)
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 6/8-bit), 20 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C

AA104SH01 Warning:

*Excluding installation guidelines, we do not assume any responsibility for any damage caused by the installation of this accessory. Please ensure that you understand how to install before subscribing. Thank you for your understanding!

*We simply cannot guarantee that you will receive tablet compatible content,

*If you do not accept A+compatible touch screen digitizers, but their flexible cable numbers are different, such as our title/description/connected photos already out of the market, please do not purchase, thank you!

We test all products before sending. But we cannot control everything, the screen is easily damaged during transportation. Therefore, please test the product before installation. If you find any issues, please do not install and contact us. If you have not tested the installation, we will not provide after-sales service or refund service. We are not responsible for any issues that may arise during the installation process.
