PANDA LCD Screen LM156LFDL01 (NCP002E) |
|
|
Panel Brand |
PANDA |
|
Panel Model |
LM156LFDL01 (NCP002E) |
|
Panel Size |
15.6" |
|
Panel Type |
Oxide TFT-LCD , LCM |
|
Resolution |
1920(RGB)×1080, FHD, 141PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
344.16(W)×193.59(H) mm |
|
Outline Size |
350.66(W)×206.19(H)×5.4(D) mm |
|
Surface |
Antiglare, Hard coating (3H) |
|
Brightness |
220 cd/m² (Typ.) |
|
Contrast Ratio |
1000:1 (Typ.) (TM) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Display Mode |
FFS, Normally Black, Transmissive |
|
Best View on |
Symmetry |
|
Response Time |
25 (Typ.)(Tr+Td) |
|
Display Colors |
262K 46% NTSC |
|
Lamp Type |
10S4P WLED , 15K hours , With LED Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Shape Style |
Slim (PCBA Bent, T≤3.0mm) |
|
Application |
Laptop |
|
Signal Interface |
eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
|

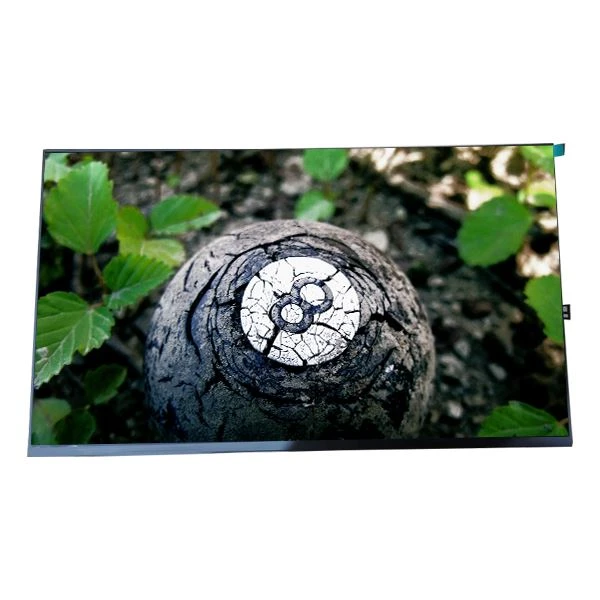

LM156LFDL01 15.6 inch slim EDP 30pin 1920*1080 IPS panel nano edge |
|
LM156LFDL01 NOTE：
Be sure to compare your panel with the one shown in the photo - the appearance, fasteners and connector must match.
Pay attention to compatible / incompatible models (if any).
Attention! You will receive one of the compatible models in the delivery, it may not match the one indicated in the header.
In the same laptop model, there may be different, incompatible matrices.
Installation of the panel requires a high qualification of a specialist.
Q: Do you accept sample orders for LM156LFDL01 ?
A: Of course!sample order is welcome !
Q: What happen if the LM156LFDL01 I receive can't work ?
A: The PANDA LM156LFDL01 will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How long is the warranty of PANDA LM156LFDL01 ?
A: 90days warranty .
Q: How can I trace my order of LM156LFDL01 ?
A: we will give you tracking number then you can trace your order from website.
