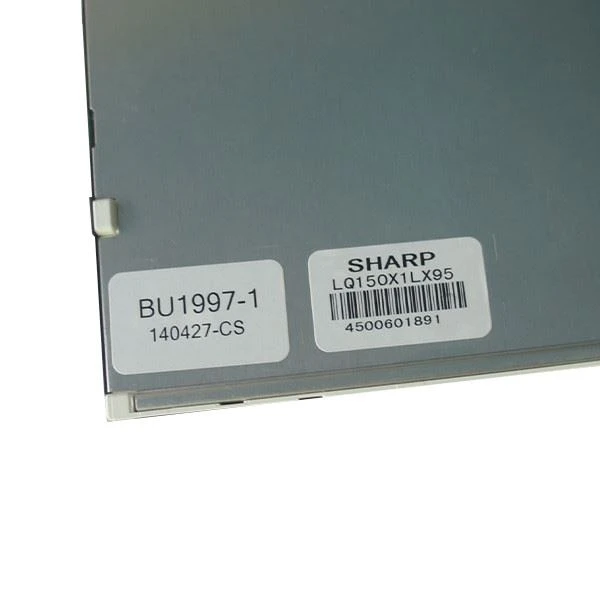

Sharp LCD Screen LQ150X1LX95 | |
Panel Brand | Sharp |
Panel Model | LQ150X1LX95 |
screen size | 15.0inches |
Panel Type | a-Si TFT-LCD , LCM |
Resolution | 1024(RGB)×768 XGA 85PPI |
Pixel configuration | RGB vertical bars |
Display size | 304.128(W)×228.096(H) mm |
Visible area | 307.2(W)×231.3(H) mm |
physical dimension | 326.5(W)×253.5(H)×10.1(D) mm |
surface | Matte (Haze 3%), Hard coating (3H) |
Display brightness | 400 cd/m² (Typ.) |
Contrast Ratio | 1500 : 1 (Typ.) [Transmission] |
Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
Reaction time | 35 (Typ.)(Tr+Td) ms |
Optical mode | ASV, Normally Black, Transmissive |
Number of colors | 262K/16.2M , 70% NTSC |
Backlight type | WLED , 70K hours, with LED driver |
refresh rate | 60Hz |
Touchscreen | Without |
Panel weight | 950g (Max.) |
Used for | Industrial |
Signal | LVDS (1 ch, 8-bit) , terminal, 20 pins |
drive voltage | 3.3V (Typ.) |
working | Storage Temp.: -25 ~ 70 °C Operating Temp.: -20 ~ 70 °C |

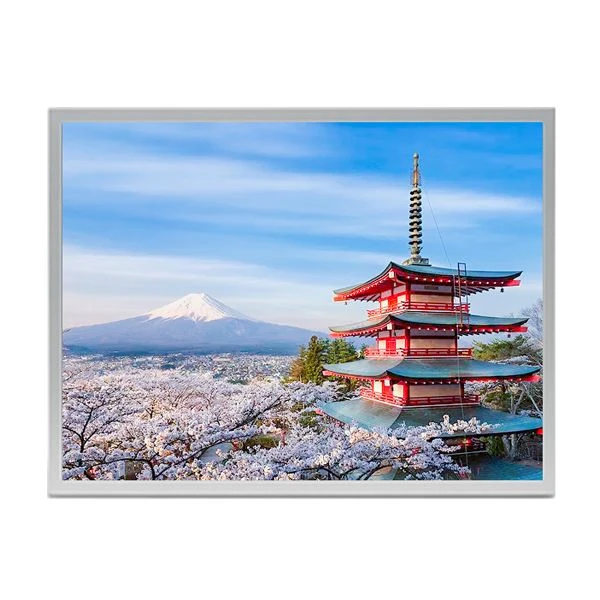

15 inch LQ150X1LX95 LCD Display 1024*768 With LVDS Interface | |
Top Quality
All screens are New&Original with original factory sealed package
Fully Testing make sure every screen you got is work perfec
Q: How to make payment of LQ150X1LX95 ?
A: We accept T/T , Paypal , western union .
Q: How can I trace my order of LQ150X1LX95 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can You declare my order of LQ150X1LX95 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of LQ150X1LX95 ?
A: Of course！If you make a large order, we will give you a discount.
