Sharp LCD SCREEN LQ190E1LX78 | |
manufacturer | Sharp |
Model Name | LQ190E1LX78 |
screen size | 19.0 inch |
Screen type | a-Si TFT-LCD , LCM |
Resolution | 1280(RGB)×1024 [SXGA] 86PPI |
Pixel configuration | RGB Vertical Stripe |
Display size | 376.32(H)×301.056(V) mm |
physical dimension | 398.1(H)×329.5(V) ×18.5(D) mm |
Visual size | 380.65(H)×306.5(V) mm |
surface treatment | Antiglare (Haze 3%), Hard coating (3H) |
Brightness | 1200 cd/m² (Typ.) |
Contrast | 1500:1 (Typ.) (TM) |
Best angle | Symmetry |
Optical mode | ASV, Normally Black, Transmissive |
Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
Responding time | 35 (Typ.)(Tr+Td) |
Number of color | 16.7M 100% sRGB |
Backlight type | WLED , 60K hours , With LED Driver |
Weight | 2.30Kgs (Max.) |
Apply to | Industrial / Outdoor High Brightness / Gaming |
Refresh rate | 60Hz |
Touch function | No touch |
signal system | LVDS (2 ch, 8-bit) 30 pins Connector |
Supply voltage | 5.0V (Typ.) |
Maximum rating | Operating Temperature: -20 ~ 65 °C ; Storage Temperature: -25 ~ 70 °C |

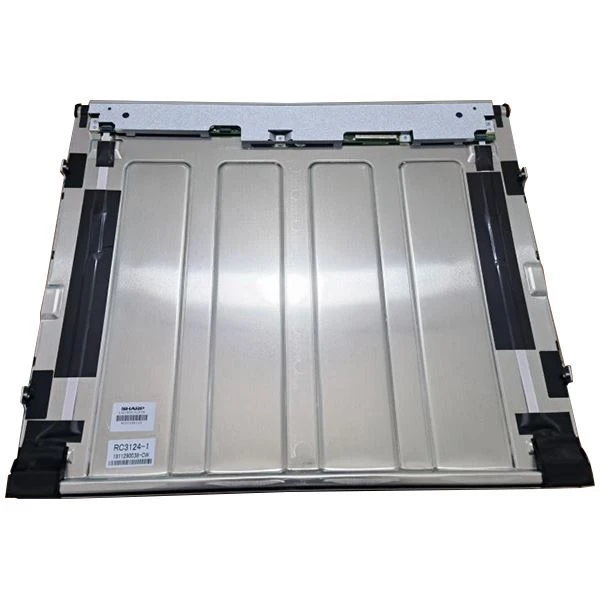

19.0 inch New original LCD Display Module LQ190E1LX78 | |
Transportation:
When you place an order, please select the shipping method and pay for the order, including shipping, and we will ship the item within 3 days after your payment is complete.
Due to different customs clearance times in each country, we do not guarantee delivery times for all international shipments, this may affect the speed at which your products are inspected, please note that buyers are responsible for all additional customs fees, brokerage fees, duties and important tax in your country. These additional charges may be charged upon delivery and we will not refund shipping charges for rejected shipments.
Shipping costs do not include any import tax, which is the buyer's responsibility.
Q:If I place order now，when will you ship the goods of LQ190E1LX78 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of LQ190E1LX78 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of LQ190E1LX78 ?
A: We accept T/T , Paypal , western union .
Q: How long is the warranty ?
A: We offer 90days warranty .
