Sharp LCD Screen LQ156D1JX05 (SHP145F) | |
Panel Brand | Sharp |
Panel Model | LQ156D1JX05 (SHP145F) |
screen size | 15.6inches |
Panel Type | CELL , Oxide TFT-LCD |
Resolution | 3840(RGB)×2160 (UHD) 282PPI |
Pixel configuration | RGB Vertical Stripe |
Display size | 345.6 × 194.4 mm (H×V) |
physical dimension | 354.78 × 204.96 × 0.824 mm (H×V×D) |
surface | Mirror (Haze 0%), Hard coating (3H) |
Display brightness | 0 cd/m² (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (Transmission) |
Viewing Angle | 88/88/88/88 (Typ.) (CR≥10) |
Good View at | Symmetry |
Reaction time | 25 (Typ.)(Tr+Td) ms |
Optical mode | IPS, Normally Black, Transmissive |
Glass Thickness | 0.30+0.30 mm |
Transmissivity | 3% (Typ.)(with Polarizer) |
Number of colors | 16.7M , 72% NTSC |
Backlight type | no backlight |
refresh rate | 60Hz |
Touchscreen | Without |
Used for | Laptop |
Signal | eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 40 pins Connector |
drive voltage | 3.3V (Typ.) |
working | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C |

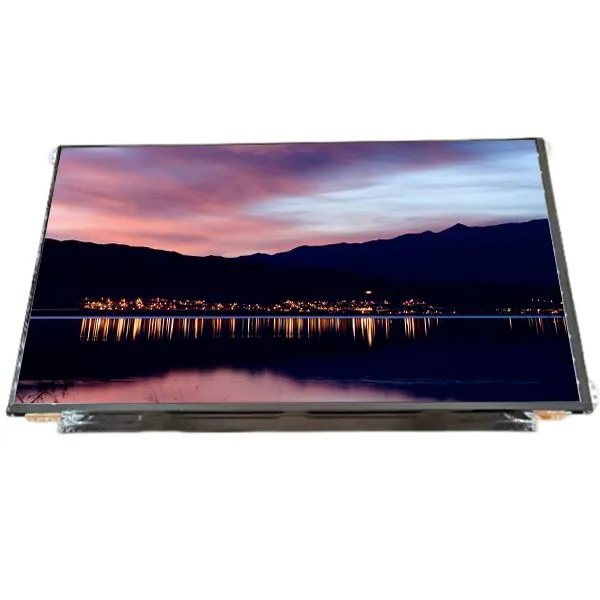

New 15.6 inch For Sharp LQ156D1JX05 LCD Display Laptop Screen | |
Shipment
1. Worldwide shipping.
2. Order will be shipped within 1-3 days after receiving your money
3. Major express partners: DHL,UPS,EMS,Fedex.
4. We are not responsible for any import fees,remote area charges,taxes or other Customs fees.
Q: How can I trace my order of LQ156D1JX05 (SHP145F) ?
A: we will give you tracking number then you can trace your order form website.
Q: Can I pay my goods Sharp LQ156D1JX05 (SHP145F) by credit card ?
A: Yes！you can use your credit card through your Paypal account.
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of lcd module LQ156D1JX05 (SHP145F) at a very low value ?
A: Yes , we can . pls inform us before shipping .
