AMPIRE LCD SCREEN AM-800256ATMQW-TA7H | |
manufacturer | AMPIRE |
Model Name | AM-800256ATMQW-TA7H |
screen size | 6.3" (8/15 cut of 7.0") |
Screen type | a-Si TFT-LCD, LCD module |
Resolution | 800(RGB)×256, 133PPI |
Pixel configuration | RGB Vertical Stripe |
Display size | 152.4(W)×48.768(H) mm |
physical dimension | 175(W)×76.5(H) ×11.53(D) mm |
Visual size | 155.3(W)×51.69(H) mm |
Brightness | 420 cd/m² (Typ.) |
Contrast | 400:1 (Typ.) (TM) |
Best angle | 6 o'clock |
Optical mode | TN, Normally White, Transmissive |
Viewing angle | 70/70/70/60 (Typ.)(CR≥10) |
Responding time | 5/11 (Typ.)(Tr/Td) ms |
Number of color | 262K 45% NTSC |
Backlight type | 3S10P WLED , 40K hours , With LED Driver |
Apply to | Industrial / Stretched Bar LCD |
Touch function | PCAP |
signal system | LVDS (1 ch, 6-bit) , 20 pins Connector |
Supply voltage | 3.3V (Typ.) |
Maximum rating | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

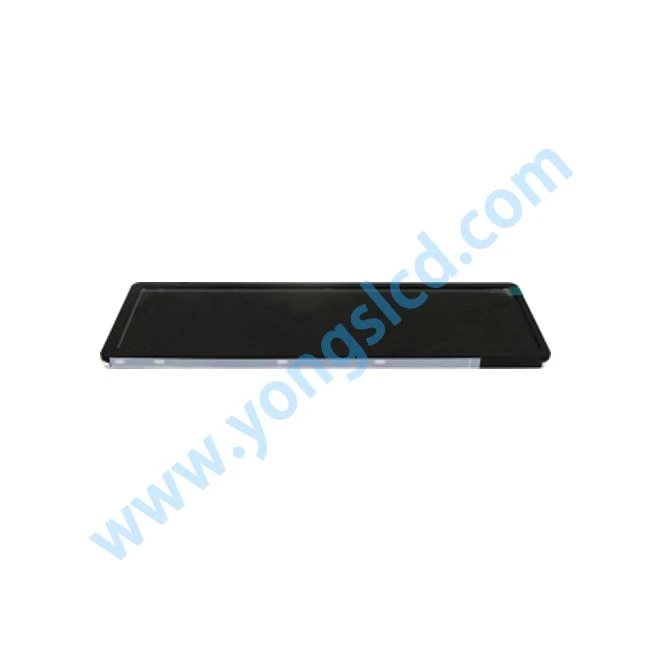

AM-800256ATMQW-TA7H 800×256 lcd panel display | |
Q: How do you ship my goods AM-800256ATMQW-TA7H ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of AMPIRE AM-800256ATMQW-TA7H ?
A: 90 days warranty .
Q:How can I trace my order of AM-800256ATMQW-TA7H ?
A:we will give you tracking number then you can trace your order form website.
Q:Can you give me a discount if I need a large quantity of AM-800256ATMQW-TA7H ?
A:Of course！If you make a large order, we will give you a discount.
We are one of the professional and experienced suppliers of AM-800256ATMQW-TA7H 800×256 lcd panel display, offering you the quotation and the price list consultation. Welcome to wholesale the high-end, quality and low price products in stock with us. Good after-sale service and fast delivery are available.
Hot Tags: am-800256atmqw-ta7h 800×256 lcd panel display, China, suppliers, wholesale, buy, cheap, discount, low price, in stock
