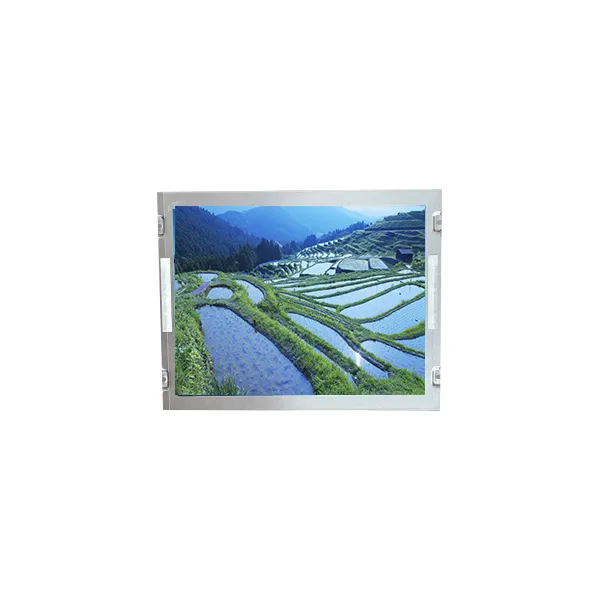

P1210XGF1MB00 Information:

Brand	TIANMA
Model P/N	P1210XGF1MB00
Diagonal Size	12.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 105PPI
Pixel Format	RGB Vertical Stripe
Active Area	245.76(W)×184.32(H) mm
Bezel Opening	249(W)×187.5(H) mm
Outline Size	260.5(W)×203(H)×10(D) mm
Surface	Hard coating
Brightness	500 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Display Mode	SFT, Normally Black, Transmissive
Best View on	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Display Colors	262K/16.7M 72%NTSC
Lamp Type	WLED, 50K hours, With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	550g (Typ.)
Application	Industrial
Signal Interface	LVDS (1 ch, 6/8-bit), 20 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 80 °C ;Storage Temp.: -40 ~ 90 °C; Vibration Level: 2.0G (19.6 m/s²)
