TFD60W12 LCD Screen Tracking Information:

Brand	TOSHIBA
Model P/N	TFD60W12
Diagonal Size	6.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	320(RGB)×234 66PPI
Pixel Format	RGB Vertical Stripe
Active Area	121.92(W)×89.154(H) mm
Bezel Opening	-
Outline Size	144(W)×109.4(H)(D) mm
Treatment	-
Luminance	280 cd/m² (Typ.)
Contrast Ratio	80 : 1 (Typ.) (TM)
Viewing Angle	45/45/45/15 (Typ.)(CR≥10)
Response	70/40 (Max.)(Tr/Td) ms
Good View at	12 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	Full color
Backlight	1 pcsCCFL, 10K hours, No Driver
Mass	210g
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	TFT Specific Analog RGB, 24 pinsConnector
Voltage Supply	5.0/13.0/23.0/-5.0V (Typ.)(VDD/VBB/VGG/VEE)
Max. Ratings	Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 65 °C

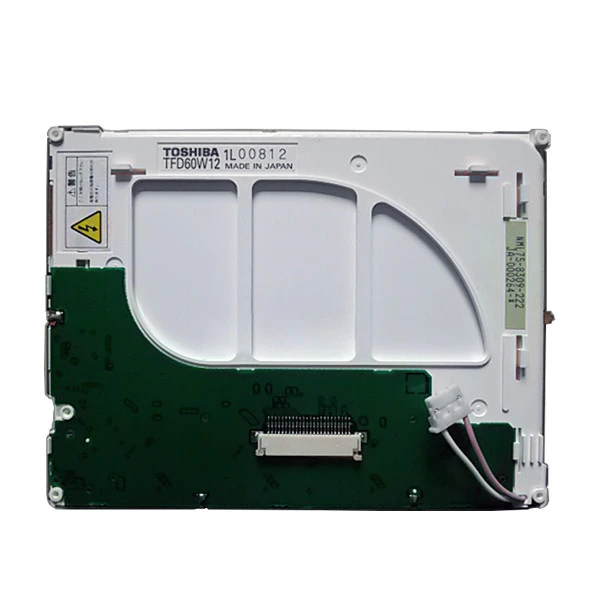

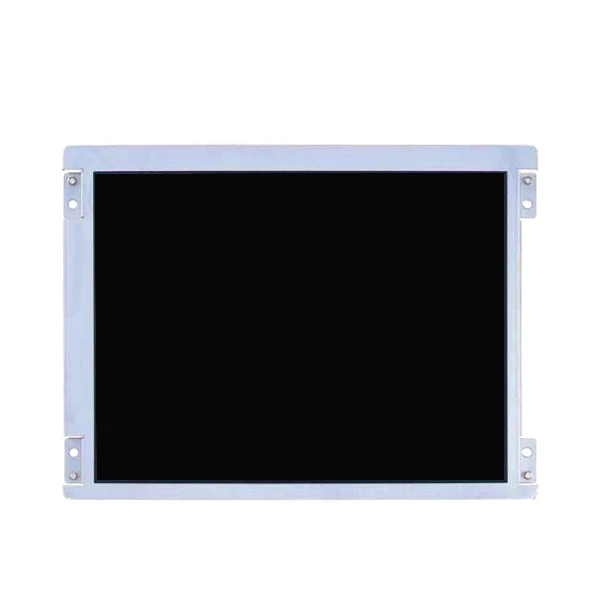

TFD60W12 6.0 Inch RGB 320*234 LCD Industrial Screen
