Description

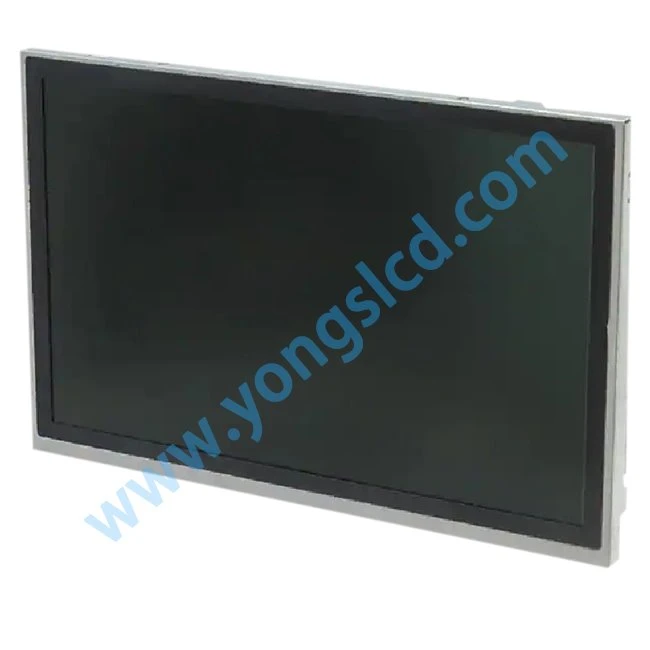

NEC LCD SCREEN NL6448BC33-70C
| Manufacturer | NEC |
Model Name | NL6448BC33-70C |
Screen Size | 10.4 inches |
Panel type | a-Si TFT-LCD, LCM |
Number of pixels | 640(RGB)×480, VGA, 76PPI |
Pixel layout | RGB vertical bar |
Display area | 211.2(W)×158.4(H) mm |
Viewable area | 215.4(W)×161.8(H) mm |
physical dimension | 243(W)×185.1(H) ×11(D) mm |
Surface treatment | Clear, Hard coating (2H), anti-reflection treatment |
Panel brightness | 900 cd/m² (Typ.) |
Contrast | 900:1 (Typ.) (TM) |
Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
Operating mode | TN, normally white display, transmissive |
Reaction time | 3/15 (Typ.)(Tr/Td) ms |
Display color | 262K, 40% NTSC |
type of light source | 4 strings WLED, 70K hours, without driver |
working frequency | 60Hz |
touch screen | No touch |
Panel weight | 475/500g (Typ./Max.) |
Signal interface | CMOS (1 ch, 6-bit), 31 pins, connector |
Drive screen voltage | 3.3/5.0V (Typ.) |
working environment | Work: -30 ~ 80 °C; Storage: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
Q:How can I trace my order of NL6448BC33-70C ?
A:we will give you tracking number then you can trace your order from website.
Q:Can I pay my order of NL6448BC33-70C via credit card ?
A:Yes！you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q:Can you give me a discount if I need a large quantity of NL6448BC33-70C?
A:Of course！If you make a large order, we will give you a discount.
