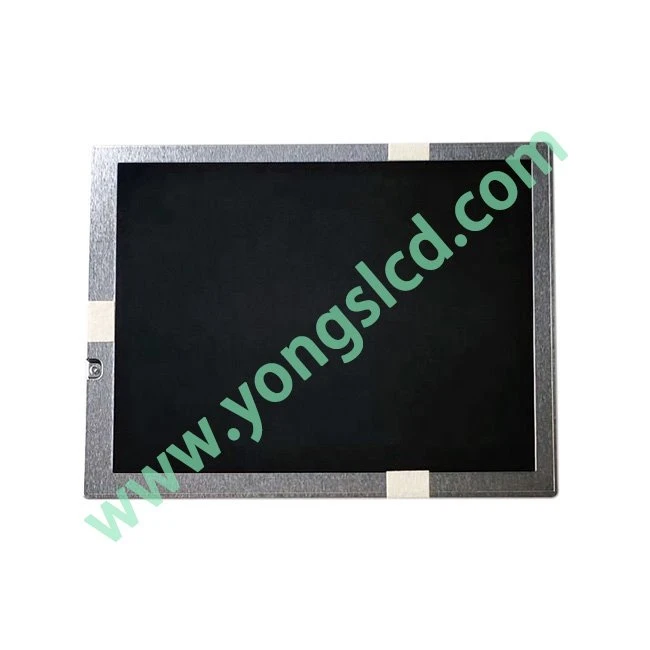

NEC LCD SCREEN NL6448BC18-03F
| Manufacturer | NEC |
Model Name | NL6448BC18-03F |
Screen Size | 5.7 inch |
Screen type | a-Si TFT-LCD, LCM |
Number of pixels | 640(RGB)×480, VGA, 139PPI |
Pixel layout | RGB vertical bar |
Display area | 116.16(W)×87.12(H) mm |
Viewable area | 120.2(W)×91.2(H) mm |
physical dimension | 135(width)×104.6(height) ×10.9(thickness) mm |
Surface treatment | Clear, Hard coating (3H) |
Panel brightness | 800 cd/m² (Typ.) |
Contrast | 850:1 (Typ.) (TM) |
Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
Operating mode | TN, normally white display, transmissive |
Best perspective | 9 o'clock |
Reaction time | 3/15 (Typ.)(Tr/Td) |
Display color | 262K, 60% NTSC |
type of light source | 9S2P×2CN WLED, 50K hours, without driver |
working frequency | 60Hz |
touch screen | No touch |
Panel weight | 165/175g (Typ./Max.) |
Signal interface | CMOS (1 ch, 6-bit), 33 pins, connector |
Drive screen voltage | 3.3V (Typ.) |
working environment | Work: -30 ~ 80 °C; Storage: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
Q:If I place order now，when will you ship the goods of NL6448BC18-03F?
A: The order will be shipped within 2-3 working days after received your payment.
Q:Can I pay my order of NL6448BC18-03F via credit card ?
A:Yes！you can use your credit card through your Paypal account.
Q:How can I trace my order of NL6448BC18-03F ?
A:we will give you tracking number then you can trace your order from website.
Q:Do you accept sample orders of NL6448BC18-03F ?
A:Of course!sample order is welcome !
