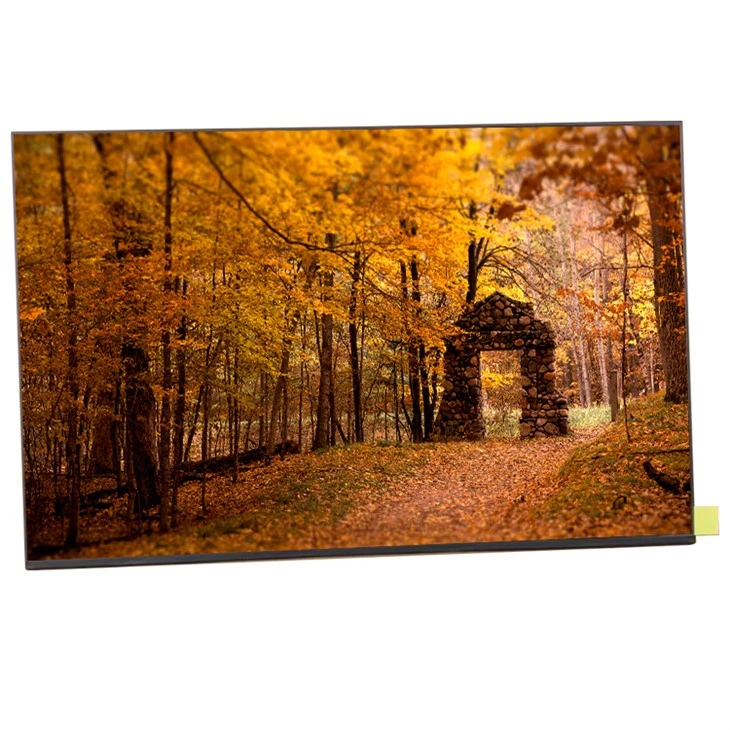

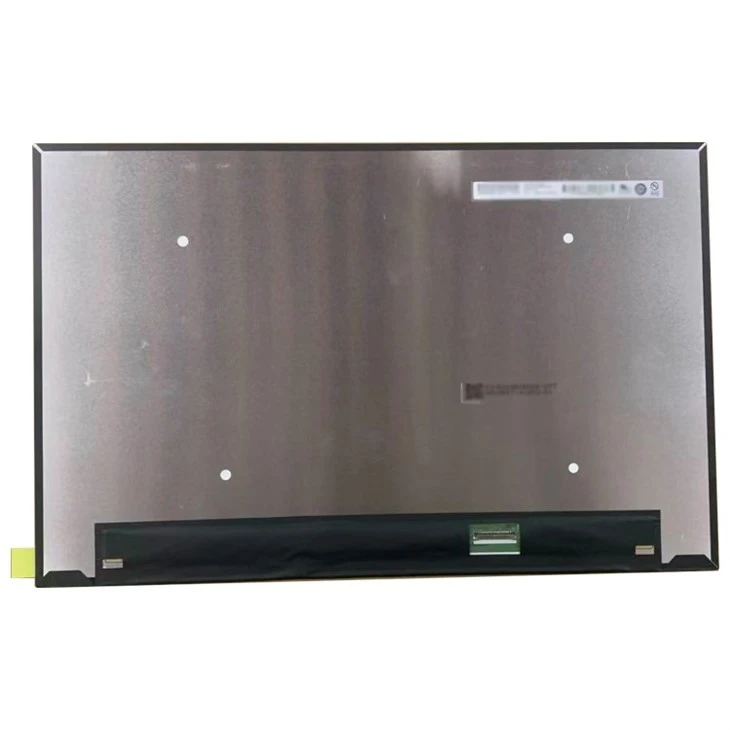

B160UAA01.0 Information:

Model	B160UAA01.0
Diagonal Size	16.0 inch
Type	a-Si TFT-LCD, Assembly
Pixel Number	1920(RGB)×1200, WUXGA, 16:10
Pixel Format	RGB Vertical Stripe
Active Area	344.68×215.42 mm (H×V)
Outline Area	352.3×239.55×3 mm (H×V×D)
Weight	400g (Max.)
Surface Feature	Antiglare
Luminance	400 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Min.)(CR≥10)
Response (ms)	25 (Typ.)(Tr+Td)
Good View at	Symmetry
Display Type	AHVA, Normally Black, Transmissive
Dispaly Colors	16.7M, 45% NTSC
Used for	Laptop
Backlight	WLED, With LED Driver, DC
Frame Rate	60Hz
Touch Panel	In-Cell Touch, I²C, for Win11
Interface Type	eDP (2 Lanes), eDP1.2, 40 pins Connector

B160UAA01.0 Conditions for Exchange:

Customer satisfaction is our priority, and we strive to deliver a great shopping experience. We provide exchange service for qualified cases if you are not fully satisfied with your B160UAA01.0 LCD panel.

To ensure a smooth exchange process, the returned panel must be kept in original condition with all original accessories and full packaging intact. After we receive and inspect the returned item, we will proceed with the exchange promptly.

If you need to apply for an exchange, please feel free to contact us. We will try our best to ensure you have a pleasant trading experience.

B160UAA01.0 Product Usage：

Product Usage

B160UAA01.0 Warranty :

1.We provide a 12‑month warranty starting from the shipment date for manufacturing quality defects of the B160UAA01.0 LCD panel. (Excludes damage caused by human error, improper installation, misuse or unauthorized modification.)

2.Please contact us promptly once any issues occur. Our team will assist you to resolve the problem as soon as possible.
