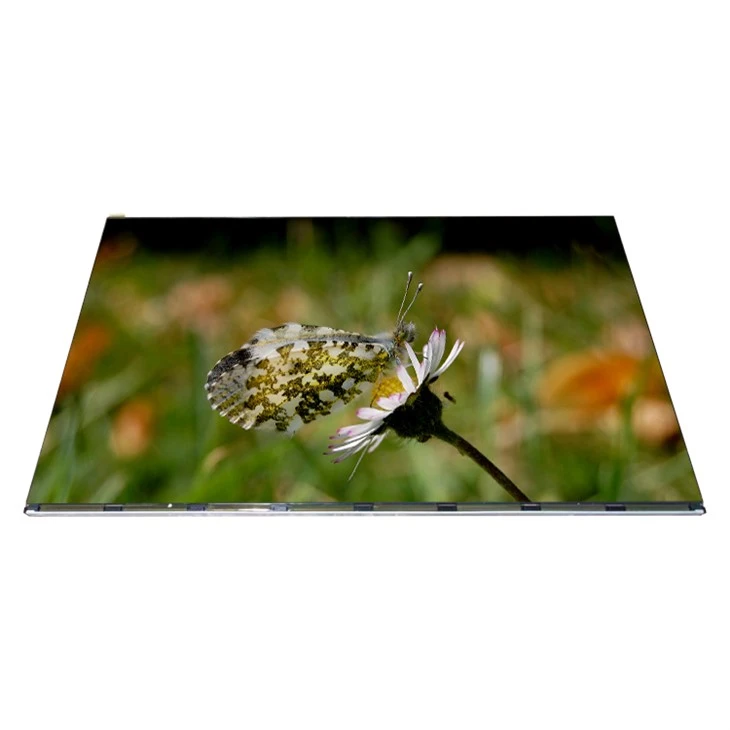

MV238QHM-NY0 LCD Panel Tracking Information:

Brand	BOE
Model Name	MV238QHM-NY0
Display Size	23.8 inch
Panel Type	a-Si TFT-LCD, LCM
Number of dots	2560(RGB)×1440, 16:9, Quad-HD
Dot Layout	RGB Vertical Stripe
Active Area	526.848×296.352 mm (H×V)
Outline Area	535×311.1 mm (H×V)
Weight	1.90±0.10Kgs (Typ.)
Surface Feature	Antiglare (Haze 25%), Hard coating (3H)
Luminance	350 cd/m² (Typ.)
Contrast Ratio	1500:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Response (ms)	14 (Typ.)(G to G)
Good View at	Symmetry
Display Type	ADS, Normally Black, Transmissive
Display Colors	16.7M, 100% sRGB, Low Blue Light
Used for	Desktop Monitor/Gaming
Total Power	28.72W (Max.)(120Hz)
Backlight	4 strings WLED, 30K hrs, No Driver
Refresh Rate	120Hz
Touchscreen	Without
Signal Type	LVDS (4 ch, 8-bit), 92 pins 0.5mm Connector
Voltage Supply	10.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

MV238QHM-NY0 LCD Panel Packaging and conditions:

We aim to deliver a hassle-free experience, including return handling. We have established return requirements to ensure smooth processing.

All returned LCD panels must be preserved in the original packaging and kept in good physical condition. Original packaging protects the panel from damage during return transit and confirms the item has not been altered or mishandled. Only panels returned with intact original packaging can be restocked and resold.

Proper package and product condition also help us efficiently investigate claims. If the returned panel is damaged, it will be hard to distinguish whether the problem comes from manufacturing defect or improper operation. Keeping the item in original packaging and good status allows us to quickly assess the issue and find the proper solution.

MV238QHM-NY0 LCD Panel Product Usage：

MV238QHM-NY0 LCD Panel Is the cable the same as the picture:

Please verify that the cable matches the photo before installation to guarantee correct connection and prevent compatibility problems.

Take time to check your original screen cable against our product photo. This simple check helps you avoid trouble caused by mismatched cables.

A matching cable is essential for normal display operation. Confirm the cable specification in advance to achieve stable connection and trouble-free use.

MV238QHM-NY0 LCD Panel FAQ:

Q: How long will I receive my goods of MV238QHM-NY0?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment for MV238QHM-NY0?

A: We accept T/T , Paypal , western union .

Q: What happen if the MV238QHM-NY0 I receive can't work ?

A: MV238QHM-NY0 will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
