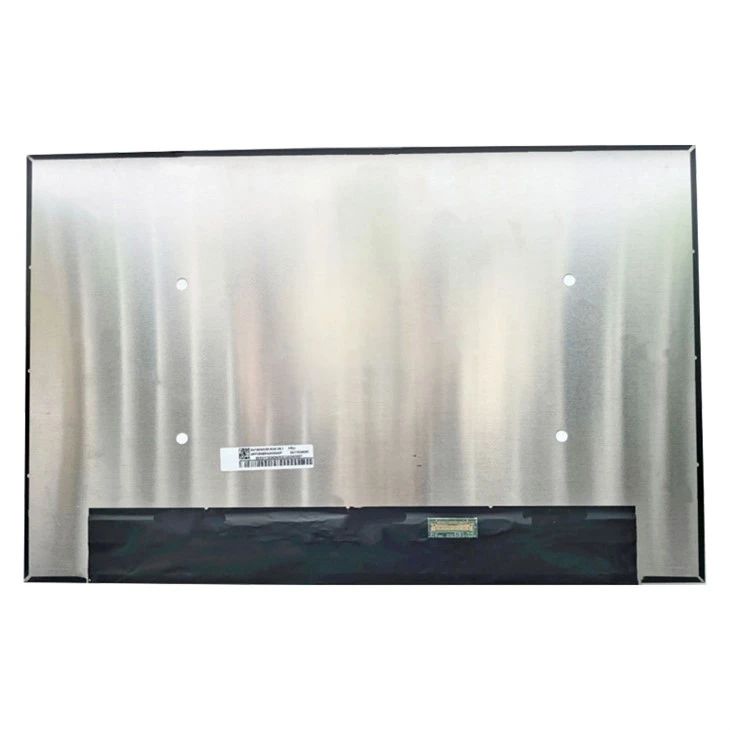

NV160WUM-K04 LCD Panel Tracking Information:

Brand	BOE
Model Name	NV160WUM-K04 (BOE0D36)
Display Size	16.0 inch
Panel Type	a-Si TFT-LCD, LCM
Number of dots	1920(RGB)×1200, 16:10, WUXGA
Dot Layout	RGB Vertical Stripe
Active Area	344.68(H)×215.42(V) mm
Outline Area	349.68(H)×225.52(V)×5.3(D) mm
Weight	410g (Typ.)
Surface Feature	Antiglare, Hard coating (3H)
Luminance	400 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Response (ms)	20 (Typ.)(Tr+Td) mm
Good View at	Symmetry
Display Type	ADS, Normally Black, Transmissive
Display Colors	16.7M, 45% NTSC, Low Blue Light
Used for	Laptop
Form Style	Slim (PCBA Bent, T≤3.5mm)
Backlight	11S6P WLED, 15K hrs, With LED Driver, DC
Refresh Rate	60Hz, AMD FreeSync
Touchscreen	In-Cell Touch, I²C, for Win10,11
Signal Type	eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane), 40 pins 0.4mm Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Operating Temperature 0 ~ 50 °C, Storage Temperature -20 ~ 60 °C

NV160WUM-K04 LCD Panel Response Time:
