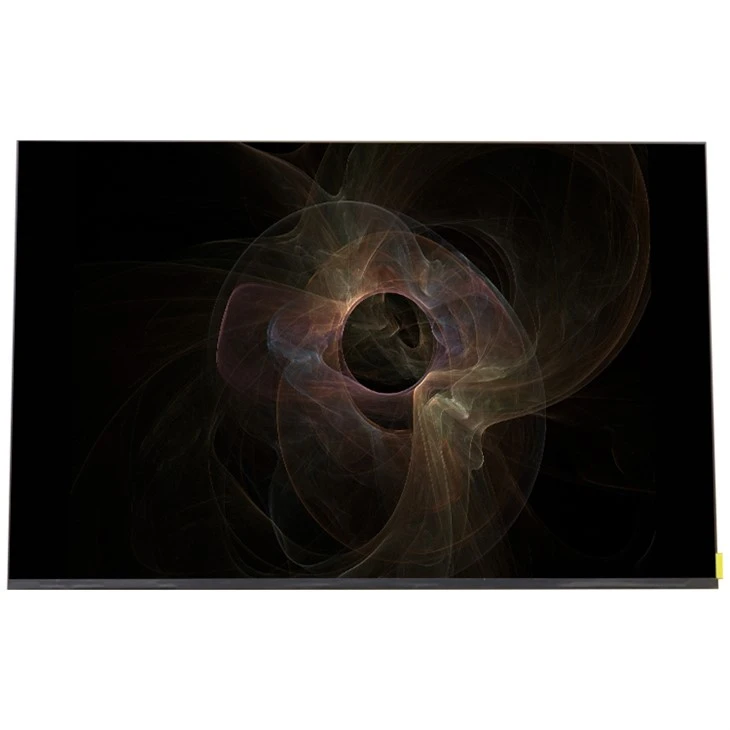

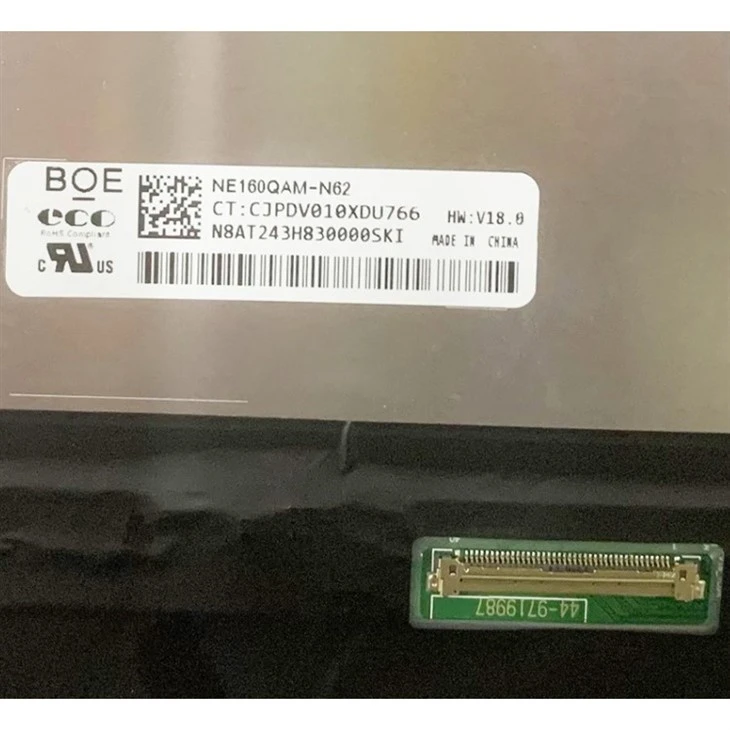

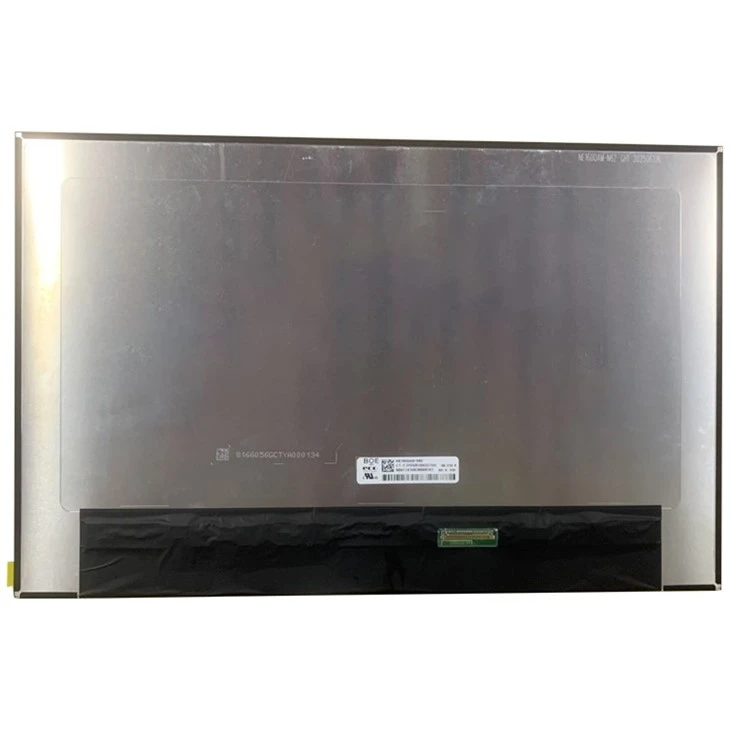

NE160QAM-N62 LCD Panel Tracking Information:

Brand	BOE
Model Name	NE160QAM-N62
Display Size	16.0 inch
Panel Type	Oxide TFT-LCD, LCM
Number of dots	3840(RGB)×2400, 16:10, WQUXGA
Dot Layout	RGB Vertical Stripe
Active Area	344.678(H)×215.424(V) mm
Outline Area	349.68(H)×225.024(V)×4.6(D) mm
Weight	330g (Max.)
Surface Feature	Antiglare, Hard coating (3H)
Luminance	800 cd/m² (Typ.), HDR400
Contrast Ratio	1500:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Response (ms)	25 (Typ.)(Tr+Td) ms
Good View at	Symmetry
Display Type	ADS, Normally Black, Transmissive
Display Colors	1.07B, 100% DCI-P3
Used for	Laptop / Outdoor High Brightness / Gaming
Form Style	Slim (PCBA Bent, T≤3.5mm)
Backlight	WLED, 15K hrs, With LED Driver
Refresh Rate	60Hz, AMD FreeSync
Touchscreen	Without
Signal Type	eDP (4 Lanes), eDP1.4b, HBR3 (8.1G/lane), 40 pins 0.5mm Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Operating Temperature 0 ~ 50 °C, Storage Temperature -20 ~ 60 °C

NE160QAM-N62 LCD Panel Diagnostic and preventive measures:

We carry out strict diagnostic tests for each NE160QAM-N62 LCD panel before shipment to eliminate potential defects. Proper preventive handling is essential to protect the panel and extend its service life.

Inspect the panel surface, connectors and display performance upon receipt. Verify for screen scratches, dead pixels, flicker or abnormal color output before installation.

Avoid static electricity: wear anti-static gloves when handling the panel. Static discharge may permanently damage the driving circuit.

Do not apply pressure or heavy loads to the LCD surface. Physical extrusion can cause internal liquid crystal rupture and dark spots.

Keep the panel away from high humidity, corrosive gas and extreme temperature environment to prevent circuit corrosion.

NE160QAM-N62 LCD Panel Product Usage：

NE160QAM-N62 LCD Panel Damage during the warranty period:

We implement strict quality control standards for all NE160QAM-N62 LCD panels before shipment. Despite rigorous testing, unexpected product issues may occasionally occur.

If any functional fault arises within the valid warranty period, please contact our support team promptly. We will follow our warranty terms to handle your case and provide proper solutions. We strive to deliver a satisfying purchasing experience for every customer.
