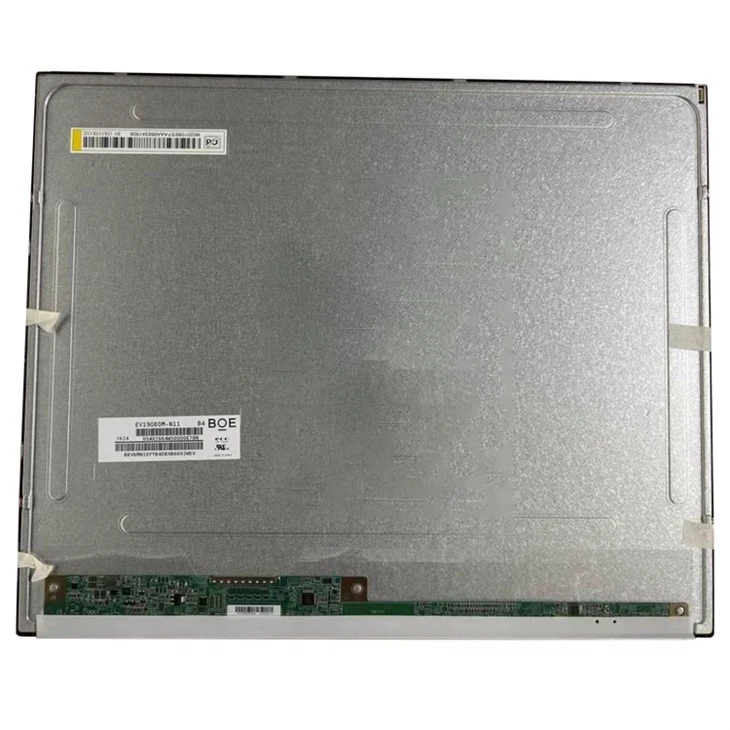

EV190E0M-N11-4W50 LCD Panel Tracking Information:

Brand	BOE
Model Name	EV190E0M-N11-4W50
Display Size	19.0 inch
Panel Type	a-Si TFT-LCD, LCM
Number of dots	1280(RGB)×1024, 5:4, SXGA
Dot Layout	RGB Vertical Stripe
Active Area	374.784(W)×299.827(H) mm
Outline Area	396(W)×324(H)×10.4(D) mm
Weight	1.80Kgs (Typ.)
Surface Feature	Antiglare (Haze 25%), Hard coating (3H)
Luminance	350 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Response (ms)	14 (Typ.)(G to G) ms
Good View at	Symmetry
Display Type	ADS, Normally Black, Transmissive
Display Colors	16.7M, 71% NTSC
Used for	Industrial
Power Cons.	13.9W (Max.)
Light Source	14S4P WLED, 30K hrs, Without Driver
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit), 30 pins 1.0mm Connector
Voltage Supply	5.0V (Typ.)
Max. Ratings	Operating Temp. 0 ~ 50 °C, Storage Temp. -20 ~ 60 °C

EV190E0M-N11-4W50 LCD Panel Working Hours:
