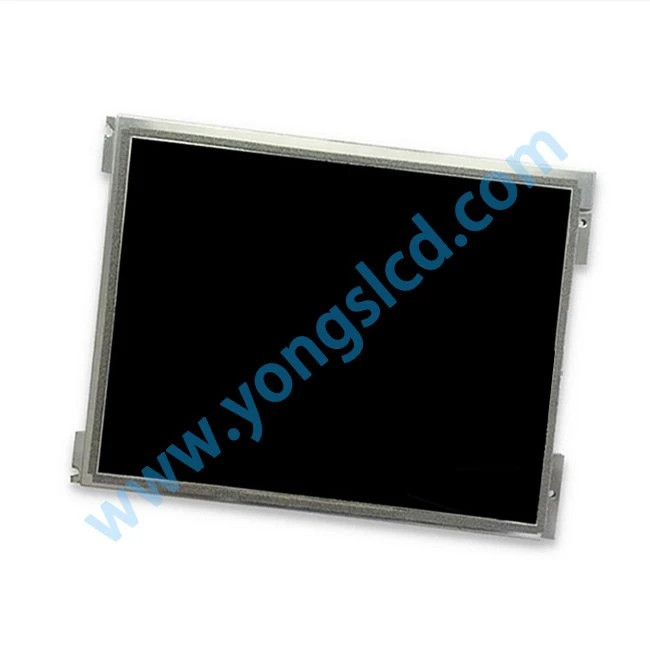

Kyocera LCD SCREEN TCG104XGLPAPNN-AN30
| Brand | Kyocera |
Model Name | TCG104XGLPAPNN-AN30 |
screen size | 10.4" |
Screen type | LCM, a-Si TFT-LCD |
Resolution | 1024(RGB)×768 [XGA] 123PPI |
Pixel configuration | RGB vertical bar |
Display size | 210.4 × 157.8 mm (H×V) |
physical dimension | 230 × 180.2 × 11 mm (H×V×D) |
Visual size | 215.4 × 161.8 mm (H×V) |
Surface treatment | Matte |
Brightness (cd/m²) | 600 (Typ.) |
Contrast | 700: 1 (Typ.) [Transmission] |
Best angle | Full view |
Optical mode | AWV, normally black display, transmissive |
Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
responding speed | 18/12 (Typ.)(Tr/Td) ms |
Number of colors | 262K/16.7M, 51% NTSC |
Backlight type | WLED, 70K hours, with LED driver |
Screen weight | 480g (Typ.) |
Refresh rate | 60Hz |
Touch function | No touch |
signal system | LVDS (1 ch, 6/8-bit), connector, 20 pins |
Supply voltage | 3.3V (Typ.) |
Maximum rating | Storage temperature: -30 ~ 80 °C Working temperature: -30 ~ 80 °C |
